Actuation

Actuation Vacuum - spring

Devices Sensitive lever, spring return

Ports G1/8

Function 3/2-way NO

CAMOZZI VALVE 354N194 PEDAL UNIT SPARE PART

Type of manual override Standard bistable

Series name 3

Actuation Double solenoid

Number of ways - positions 5/3 CC

Ports G1/8

Solenoid interface Mech. sol. 22 x 22

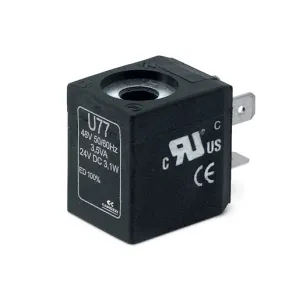

Camozzi solenoids SERIES A.. and U..

Read the specifications in the attached file to make sure you buy the exact coil

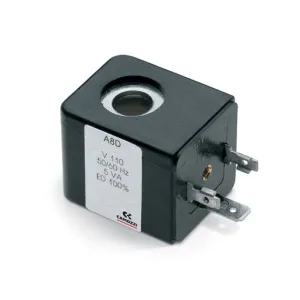

Camozzi solenoids series A8..

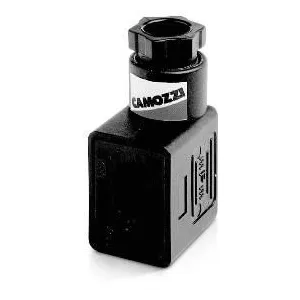

Connectors for solenoids Mod.

U7..

and G7..

General characteristics of the Series

Wire insulation class H ( 180 C° )

Duty cycle ED 100%

Tolerance V AC +10 -15 %

Tolerance V DC +/- 10 %

Camozzi conveyors with ducted exhausts

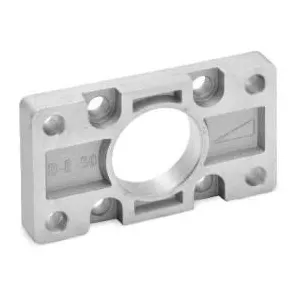

Flange mounting

Mod. D

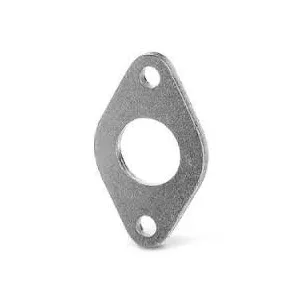

Flange mounting

Mod. E

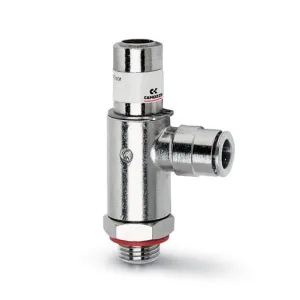

Swivelling one-way and two-way flow regulators

with nominal diameter 1, 5 - 3,5 - 5 mm

Connections: M5, G1/8, G1/4

These one-way and two-way flow regulators have been designed to be mounted directly on valves or cylinders, keeping overall dimensions to a minimum.

The flow rate adjustment characteristic is very wide and gradual, so use is very precise at both the minimum and the maximum flow rate.

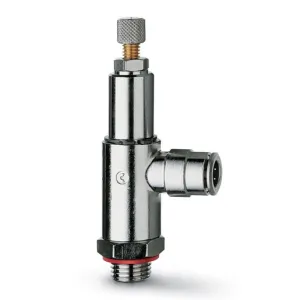

Swivelling one-way and two-way flow regulators

with nominal diameter 1, 5 - 3,5 - 5 mm

Connections: M5, G1/8, G1/4

These one-way and two-way flow regulators have been designed to be mounted directly on valves or cylinders, keeping overall dimensions to a minimum.

The flow rate adjustment characteristic is very wide and gradual, so use is very precise at both the minimum and the maximum flow rate.

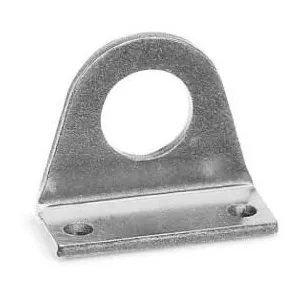

Foot mounting mod B

Material of feet and ring nut: galvanised steel

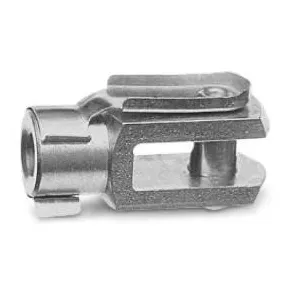

CAMOZZI CLEVIS FOR CYLINDER MOD. G

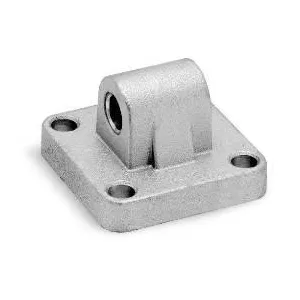

Rear male hinge mounting Mod. L

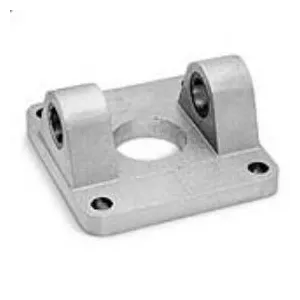

Camozzi Hinge Mod C

Series name 2

Reset Spring return

Actuation Front panel actuation

Ports M5

Function 3/2-way NC

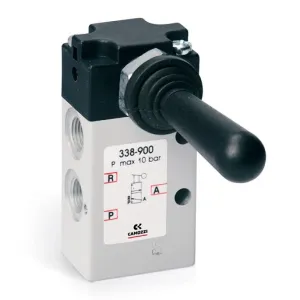

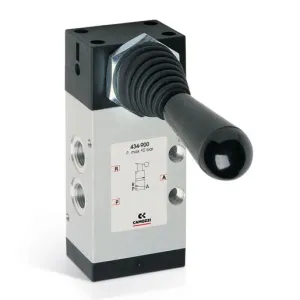

The Series 3 (from G1/8) and Series 4 (from G1/4) 3/2, 5/2 and 5/3-way manual valves are available with different actuating devices to suit a variety of uses.

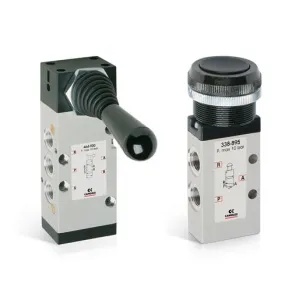

Series 1 is available with two devices: 3/2-way push button and 3/2 and 5/2-way manual lever.

DATA SHEET IN THE ATTACHMENTS TO FIND THE RIGHT VALVE

Series name 2

Reset Detent

Ports Cartridge ø 4

Function 3/2-way NC

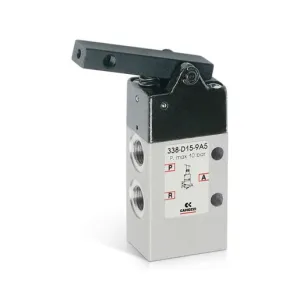

The special mechanical device allows these limit valves to be operated with very low actuation forces.

The Series 3 is built with a mechanical lever device that works under vacuum and to which a Ø3 steel extension can be fitted to increase sensitivity. The special mechanical device allows these limit valves to be operated with very low actuation forces.

The Series 3 is built with a mechanical lever device that works under vacuum and to which a Ø3 steel extension can be fitted to increase sensitivity.

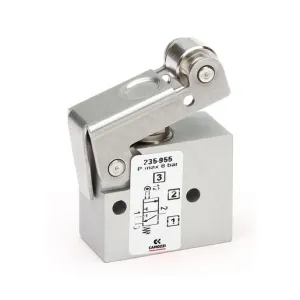

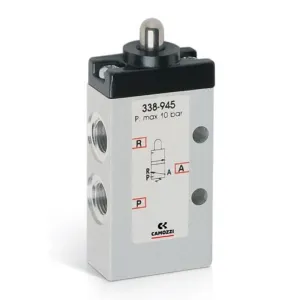

The mechanically actuated valves of Series 1 in G1/8 and G1/4 and of Series 3 in G1/8 are made with three different devices:

front actuation

roller lever actuation

one-way roller lever actuation.

Reset for each of the three devices is by mechanical spring.

Series 3 3/2-way monostable valves are normally closed in the rest condition when the pressure inlet is at 1; they become normally open when the pressure inlet is on connection 3, while the use at 2 always remains unchanged.

Series 3 5/2-way valves can be supplied from connections 3 and 5 with 2 different pressures, should a cylinder need to be operated with two different working pressures.

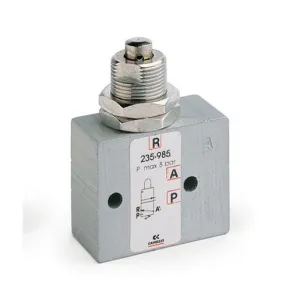

Series name 2

Reset Detent

Ports M5

Function 3/2-way NC

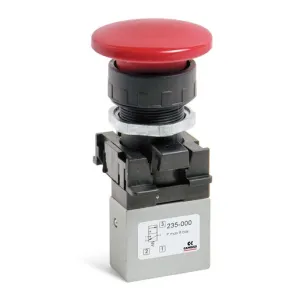

Series name 2

Reset Spring return

Devices Palm

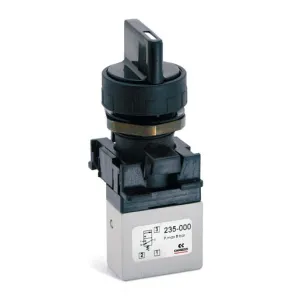

Series name 2

Reset Detent

Devices 2-position selector

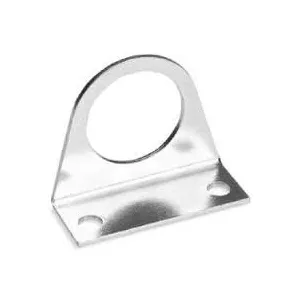

CAMOZZI MOUNTING BRACKET MOD. C114 ST

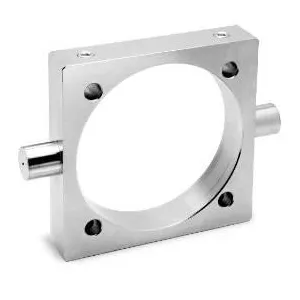

Intermediate hinge mounting Mod. F

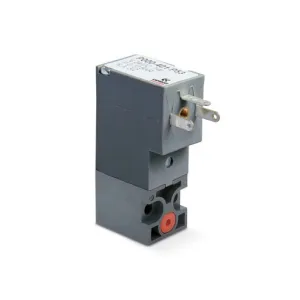

Series P

3/2 way - Normally closed (NC) and Normally open (NO)

Series P direct-acting solenoid valves are available in 3/2 way normally closed (NC) and normally open (NO) versions.

Both versions can be mounted on single bases or on manifolds and are fitted with a monostable manual override.

N.B.: All Series P solenoid valves are powered by direct current (DC).

For alternating current (AC) supply, the connector with rectifier Mod. 125-900 must be used.

The pedal is available in both pneumatic and electric versions.

The pneumatic version is available with a 5/2-way and 3/2 NC valve with M5 and G1/4 ports and 4/2 tube.

The front pneumatic connections make it easy to fit fittings and silencers.

The electric version in series 3 is available with a microswitch with single-pole changeover contacts; the cable outlet is at the front (PG9).

The series 3 pedal can be used with bistable or monostable function, by positioning the selector located under the red flap as shown in the drawing (X).

Manual override type Standard bistable

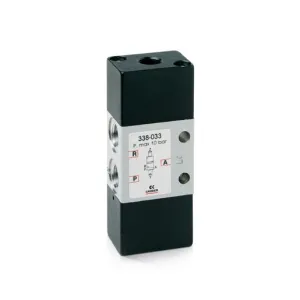

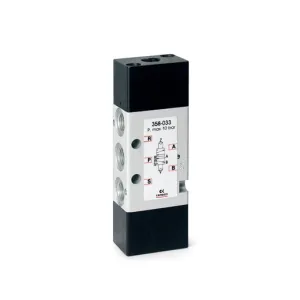

Series name 3

Actuation Pneumatic pneumatic

Number of ways - positions 5/2

Ports G1/8

Series 3 valves are fitted with a manual override that allows stable actuation and can use Series U or G solenoids (22x22).

Pneumatically operated 3/2 NC valves become NO when the supply is on port 3.

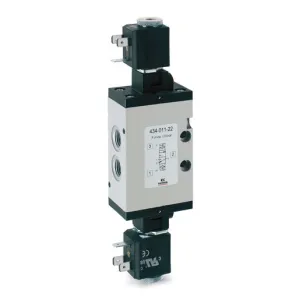

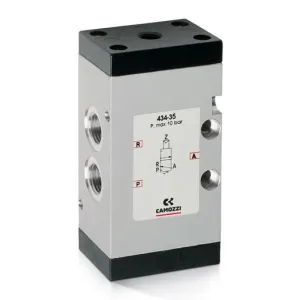

Series 4 valves are available in the 3/2, 5/2, 5/3 versions in the two basic configurations:

with electric actuation and mechanical spring return

with electro-pneumatic actuation and return with internal and external servo-piloting.

Series 4 valves are fitted with a manual override that allows stable actuation and are suitable for all particularly heavy-duty applications.

All Series 4 valves use Series U, G, A8 and H8 solenoids.

3/2 NC pneumatically controlled valves become NO when the supply is on port 3.

Swivelling one-way and two-way flow regulators

with nominal diameter 1, 5 - 3,5 - 5 mm

Connections: M5, G1/8, G1/4

These one-way and two-way flow regulators have been designed to be mounted directly on valves or cylinders, keeping overall dimensions to a minimum.

The flow rate adjustment characteristic is very wide and gradual, so use is very precise at both the minimum and the maximum flow rate.

Swivelling one-way and two-way flow regulators

with nominal diameter 1, 5 - 3,5 - 5 mm

Connections: M5, G1/8, G1/4

These one-way and two-way flow regulators have been designed to be mounted directly on valves or cylinders, keeping overall dimensions to a minimum.

The flow rate adjustment characteristic is very wide and gradual, so use is very precise at both the minimum and the maximum flow rate.

Swivelling one-way and two-way flow regulators

with nominal diameter 1, 5 - 3,5 - 5 mm

Connections: M5, G1/8, G1/4

These one-way and two-way flow regulators have been designed to be mounted directly on valves or cylinders, keeping overall dimensions to a minimum.

The flow rate adjustment characteristic is very wide and gradual, so use is very precise at both the minimum and the maximum flow rate.

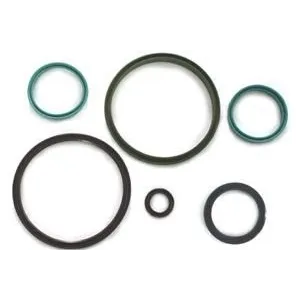

CAMOZZI SEAL KIT FOR CYLINDERS

CONTACT US FOR INFORMATION ON WHICH TO ORDER!

CAMOZZI SEAL KIT FOR CYLINDERS

CONTACT US FOR INFORMATION ON WHICH TO ORDER!

CAMOZZI SEAL KIT FOR CYLINDERS

CONTACT US FOR INFORMATION ON WHICH TO ORDER!

Magnetic sensors with 2 or 3-wire cable for T-slot

Mod. CST

Operation Reed NC

Supply voltages 3-wire cst (PNP)

Series name CS

Cable length 2 m

Connections 3 wires

Slot type T-slot

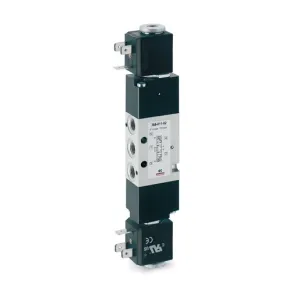

The Series 3 solenoid valves in G1/8 and G1/4 are available in the 2x3/2 - 3/2 - 5/2 and 5/3 versions in the two basic configurations:

with electro-pneumatic actuation and mechanical spring return

with electro-pneumatic actuation and return with internal and external servo-piloting.

Series 3 valves are fitted with a manual override that allows stable actuation, and can use Series U or G solenoids (22x22).

3/2 NC pneumatically controlled valves become NO when the supply is on port 3.

Series 4 valves are available in the 3/2, 5/2, 5/3 versions in the two basic configurations:

with electric actuation and mechanical spring return

with electro-pneumatic actuation and return with internal and external servo-piloting.

Series 4 valves are fitted with a manual override that allows stable actuation and are suitable for all particularly heavy-duty applications.

All Series 4 valves use Series U, G, A8 and H8 solenoids.

3/2 NC pneumatically controlled valves become NO when the supply is on port 3.

Series 6 solenoid valves are available as 2/2-way and 3/2-way in NC and NO versions.

These solenoid valves are of the direct-acting plunger type and can be used with or without lubrication.

The bodies of these solenoid valves are designed for both single and manifold use.

The latter are provided with G1/8 threaded ports and with the built-in ø4 cartridge (G3/8 for 2-way only).

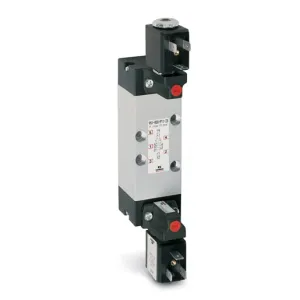

Series 9

5/2 5/3 way CC CO

Ports: G1/4 (size 1), G3/8 (size 2), G1/2 (size 3)

In accordance with ISO 5599/1 Standards

Series 9 electro-pneumatic or pneumatically controlled valves are made in accordance with ISO recommendations in sizes 1 - 2 and 3.

The simplicity of pneumatic and electrical wiring makes this series of valves extremely flexible.

Foot mounting mod B

Material of feet and ring nut: galvanised steel

MINI CYLINDER MOUNTING E

Terminal module

Mod. CNVL-*H
