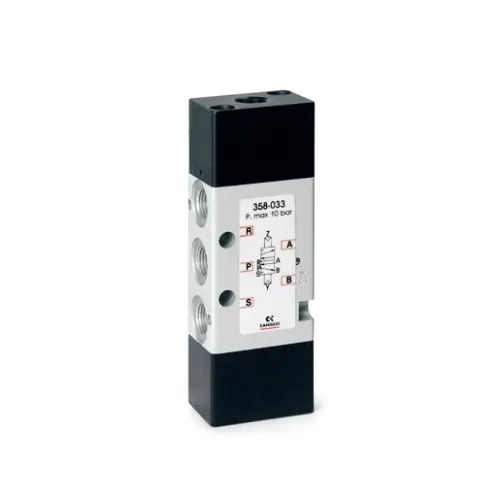

CAMOZZI PNEUMATIC CONTROL VALVE 358-033

Code: CL358033
€29.50
VAT excluded: €24.18
In stock 2 pieces in stock Ships in 24/48 hours

Description

5/2 Bistable Pneumatically Operated Valve Camozzi Series 3 G1/8 - Item No. 358-033


Camozzi 358-033 valve of the Series 3, bistable pneumatically operated 5/2 distributor: an air signal on one pilot switches the valve, which stays in the new position until a signal arrives on the opposite pilot. It is the typical valve of fully pneumatic circuits, controlled by limit switches, push buttons or pedals, without electrical parts. G1/8 ports, flow 700 Nl/min, operating pressure from -0.9 to 10 bar, minimum pilot pressure 1.5 bar. Balanced spool construction with aluminium body, stainless steel spool and NBR seals, temperature from 0 to 60 °C. It can be mounted in line or on a manifold.

Technical Specifications

  • Type: Bistable pneumatically operated 5/2 valve
  • Series: 3
  • Ports: G1/8
  • Flow: 700 Nl/min
  • Operating pressure: -0.9 to 10 bar
  • Minimum pilot pressure: 1.5 bar
  • Materials: Aluminium body, stainless steel spool, NBR seals
  • Temperature: 0 to 60 °C (from -20 °C with dry air)
  • Mounting: In line or on a manifold
  • Item No.: 358-033
  • Brand: CAMOZZI

Applications and Uses

  • Fully pneumatic circuits
  • Control of double-acting cylinders with memory
  • Environments where electrical components are avoided

More details

Brand
CAMOZZI
Code
CL358033
Manufacturer code
358-033

Attachments

Recommended accessories and spare parts

CAMOZZI NIPPLE ART. 2501

€2.10
AVAILABLE
Availability: 24 In stock

Camozzi Mod. 2501 metric-parallel nipple: double male with equal parallel G threads, in nickel-plated brass, to join two female threaded components. Series 2000. Sizes 1/8 to 1/2 among the variants.

CAMOZZI SILENCER ART. 2921

€4.50
AVAILABLE
Availability: 33 In stock

Camozzi Mod. 2921 silencer with sintered bronze element and copper-plated steel body, for valve exhausts: G1/8 to G3/4 among the variants, up to 10 bar. G1/8: 1730 Nl/min, 81 dB(A).

CAMOZZI FITTING ART.6512

€1.20
AVAILABLE
Availability: 6 In stock

Camozzi 6512 straight male fitting, Series 6000 super-rapid: connection for 4 mm tube and metric male thread M5 or M6 among the variants. Nickel-plated brass, up to 16 bar, weight 4-6 g.

CAMOZZI FITTING ART.6510

€2.50
AVAILABLE
Availability: 40 In stock

Camozzi S6510 Sprint straight male fitting, Series 6000 super-rapid: tube connection and G male thread with PTFE sealing ring. Tube from 4 to 14 mm and thread from 1/8 to 1/2 among the variants.
