Bosch BT 350 Professional telescopic pole, item no. 0601015B00, three-section aluminium, adjustable from 140 to 350 cm, with 1/4" thread for laser levels, metal bracket and holder included. Weighs about 2.5 kg.
Bosch Measuring Tools
Bosch Measuring Tools
Bosch Professional measuring tools for the building site and site surveys: laser distance meters, line and rotary laser levels, an optical level, an electronic level, a digital protractor, a wall detector, a thermal detector and a measuring wheel. Accessories are here too: tripods, telescopic pole, wall mount and laser receivers. Below the products you will find a guide to choosing the right tool.
There are 21 products.
Bosch GAM 220 MF Professional digital protractor, item no. 0601076600: measuring range from 0° to 220° with ±0.1° accuracy, 40 cm arms, automatic calculation of single and compound mitre angles, and a measurement memory. For joiners and fitters.

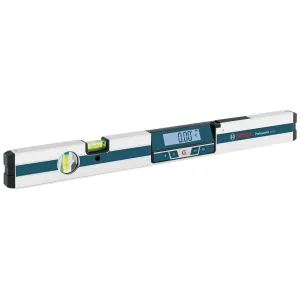

Bosch GIM 60 L Professional digital electronic level, item no. 0601076900: length 60 cm, measuring range 0-360° with accuracy of ±0.05° at 0°/90°, built-in point laser with 30 m range, magnets and fixing straps.
Bosch kit with GLL 3-80 P Professional multi-line laser level: three 360° lines, one horizontal and two vertical, ±0.2 mm/m accuracy, self-levelling within ±4°, up to 80 m with receiver and IP54 protection. Mount included to be confirmed.
Bosch kit with GLL 2-80 P Professional line laser level and site mount (to be confirmed): self-levelling 360° laser planes with ±0.2 mm/m accuracy, 20 m working range (up to 80 m with receiver), pulse function and IP 54 protection.
Bosch Professional kit with GLM 100-25 C laser distance meter, item no. 0601072Y00, and BT 150 tripod, item no. 0601096B00: measures up to 100 m with ±1.5 mm accuracy, digital viewfinder, inclinometer, Bluetooth and a 55 to 157 cm tripod.
Bosch GLM 40 Professional laser distance meter, item no. 0601072900: measures from 0.15 to 40 m with an accuracy of ±1.5 mm, calculates areas and volumes, stores 10 measurements and is IP54 protected. With protective case and 2 AAA batteries.
Bosch GMS 100 M Professional digital detector, item no. 0601081100: finds ferrous metals up to 100 mm, non-ferrous metals up to 80 mm and live cables up to 50 mm, with no calibration, automatic scale zoom and IP54 protection.
Bosch GOL 26 D Professional optical level, item no. 0601068002, in a set with BT 160 tripod and GR 500 staff: 26x magnification, ±1.6 mm accuracy over 30 m, 100 m range, IP54 metal body. For levelling surveys on site.
Bosch GRL 300 Professional series rotating laser level, self-levelling horizontally and vertically. The catalogue name indicates GRL 300 H with tripod and staff, the code 0601061701 the GRL 300 HVG set without tripod: version and equipment to be confirmed.

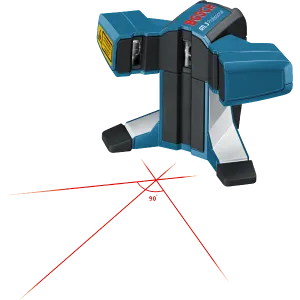

Bosch GTL 3 Professional tile laser, item no. 0601015200: two lines at 90° and a third at 45°, angular accuracy of ±0.2 mm/m, 20 m working range, IP54 protection and power from four AA batteries.
Bosch GWM 32 Professional measuring wheel, item no. 0601074000: 1 m circumference rubberised aluminium wheel, measures up to 9,999.9 m with an accuracy of ±1 dm over 100 m, telescopic pole and a weight of 1.4 kg.
Bosch LR 1 Professional laser receiver, item no. 0601015400, for GRL 400 H and GRL 300 HV rotating lasers: range up to 200 m, visual and acoustic signals, fine accuracy of ±1 mm, IP65 protection and a 9 V battery included.

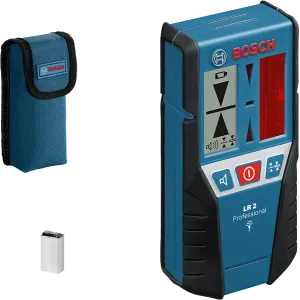

Bosch LR 2 Professional laser receiver, item no. 0601069100, for GLL 2-50, GLL 3-50, GLL 2-80 P and GLL 3-80 P line lasers: range up to 50 m, display, LEDs and acoustic signal, fine accuracy of ±1 mm, IP54 protection.
Bosch BT 170 HD Professional site tripod, item no. 0601091B00: working height from 107 to 165 cm, 5/8" thread, Quick-Clamp quick locking and weight of about 5.5 kg, for measuring instruments on site.

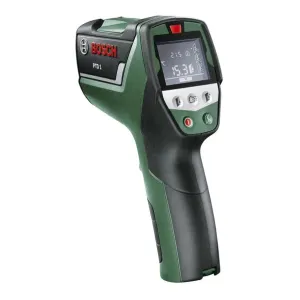

Bosch PTD 1 thermal detector, item no. 0603683000: contactless measurement of surface temperature, room temperature and air humidity, with a three-LED traffic light that signals thermal bridges and mould risk. 10:1 optics.
Bosch UniversalDistance 40C laser distance measurer, item no. 0603672101: measures up to 40 m with an accuracy of ±2.0 mm, calculates areas and volumes and sends data to the Bosch app via Bluetooth. With soft pouch and 2 AAA batteries.
Bosch UniversalLevel 360 line laser level, item no. 0603663E03, in a set with tripod: 360° horizontal line and 120° vertical line, green beam, self-levelling within ±4°, accuracy of ±0.4 mm/m and a working range of 24 m in diameter.
Bosch WM 4 Professional wall mount, item no. 0601092400, for the GRL 300 HV/HVG, GRL 400 H and GRL 500 H/HV Professional lasers: several fixing options, height adjustment with locking device and a weight of about 0.7 kg.
Bosch Zamo III laser distance measurer, item no. 0603672702: measures from 0.15 to 20 m with an accuracy of ±3 mm, is used with a single button and calculates area with a double click. Accepts tape, wheel and line adapters. With 2 AAA batteries.
