RMI/U 50

STM worm gearboxes in sizes RMI 50, U 50 and U 63, with the parts to fit them: motor flanges, output flanges, output shafts, torque arms and half-couplings. The name of each part gives the series, the size and, where needed, the PAM, the form or the bore. Below the products you will find the guide to matching gearbox, motor and spares.

Active filters

DOUBLE OUTPUT SHAFT FOR RMI50 GEARBOX mm.24

€29.10
Only 2 left!
Availability: 2 In stock

Double-ended slow shaft Ø 24 mm for STM RMI 50 gearbox, item no. 2420814011. Supplied as a kit with UNI 6604-69 keys, washers, screws and Seeger rings; fits the gearbox with a standard hollow shaft.

DOUBLE OUTPUT SHAFT FOR U50 GEARBOX mm.25

€36.00
AVAILABLE
Availability: 3 In stock

Double-ended slow shaft Ø 25 mm for STM U 50 gearbox, item no. 2420814141. Supplied as a kit with UNI 6604-69 keys, washers, screws and Seeger rings; fits the gearbox with a standard hollow shaft.

DOUBLE OUTPUT SHAFT FOR U63 GEARBOX mm.25

€45.80
AVAILABLE
Availability: 4 In stock

STM spare part item no. 2420814151: 25 mm double-ended slow shaft for the U 63 gearbox. Mounting kit complete with keys, washers and screws plus Seeger rings, for a hollow shaft of standard diameter.

HALF-COUPLING FOR U50 GEARBOX 14

€3.80
Only 2 left!
Availability: 2 In stock

STM half coupling for U 50 worm gearbox, 14 mm bore, item no. 2450900421. A spare part for the motor-gearbox coupling; construction type to be confirmed before ordering.

HALF-COUPLING FOR U50 GEARBOX 19

€8.30
Only 2 left!
Availability: 2 In stock

STM spare part item no. 2450900491: half coupling with 19 mm bore for size 50 of the U series gearboxes, to connect motor and gearbox. Type to be confirmed on the part fitted.

HALF-COUPLING FOR U63 GEARBOX 24

€12.00
Only 2 left!
Availability: 2 In stock

STM half coupling for U 63 worm gearbox, 24 mm bore, item no. 2450900341. A spare part for the motor-gearbox coupling; construction type to be confirmed before ordering.

HALF-COUPLING NEW TYPE U 50 BORE 11

€10.90
AVAILABLE
Availability: 3 In stock

STM new-type half coupling, 11 mm bore, for U 50 gearbox, item no. 2450901361: in quenched and tempered steel, part of the STM motor-gearbox coupling without fretting and with reduced overall dimensions.

HALF-COUPLING OLD TYPE U 50 BORE 11

€14.70
AVAILABLE
Availability: 10 In stock

Old-type half coupling for U series worm gearbox size 50, with 11 mm bore. A spare part to be matched to the motor or to the input member of the gearbox.

HALF-COUPLING UMI50 NEW TYPE BORE 14

€22.70
AVAILABLE
Availability: 3 In stock

STM spare part item no. 2450901371: new-type half coupling with 14 mm bore for U 50 worm gearboxes, in quenched and tempered steel, for the coupling to the motor.

HALF-COUPLING UMI50 NEW TYPE BORE 19

€11.50
Last one left!
Availability: 1 In stock

STM new-type half coupling, 19 mm bore, for U 50 gearbox, item no. 2450901381: in quenched and tempered steel, part of the STM motor-gearbox coupling without fretting and with reduced overall dimensions.

HALF-COUPLING UMI63 NEW TYPE BORE 14

€25.40
AVAILABLE
Availability: 6 In stock

STM spare part item no. 2450901396: new-type half coupling with 14 mm bore for U 63 worm gearboxes, in quenched and tempered steel, for the coupling to the motor.

HALF-COUPLING UMI63 NEW TYPE BORE 19

€25.40
AVAILABLE
Availability: 10 In stock

STM new-type half coupling, 19 mm bore, for U 63 gearbox, item no. 2450901406: in quenched and tempered steel, part of the STM motor-gearbox coupling without fretting and with reduced overall dimensions.

HALF-COUPLING UMI63 NEW TYPE BORE 24

€14.10
AVAILABLE
Availability: 5 In stock

STM spare part item no. 2450901416: new-type half coupling with 24 mm bore for U 63 worm gearboxes, in quenched and tempered steel, for the coupling to the motor.

LONG OUTPUT FLANGE FOR U50 GEARBOX

€15.70
AVAILABLE
Availability: 6 In stock

STM long output flange for U 50 gearbox, item no. 1010050831: used for flange mounting on the slow shaft side; standard hollow output 25 mm for the size.

LONG OUTPUT FLANGE FOR U63 GEARBOX

€13.80
COMING SOON
Availability: Out of stock

STM spare part item no. 1010050861: output flange in the long version for the U 63 worm gearbox, for flange mounting as an alternative to the universal feet.

MOTOR FLANGE FOR U50 GEARBOX PAM 80 B14

€32.50
Only 2 left!
Availability: 2 In stock

STM motor flange for U 50 gearbox, PAM 80 B14 configuration, item no. 2450010541. It matches the IEC 80 motor to the gearbox: catalogue motor shaft 19 mm and flange 120 mm.

MOTOR FLANGE FOR U50 GEARBOX PAM63 B5

€34.80
AVAILABLE
Availability: 4 In stock

STM spare part item no. 2450010491: motor connection flange for the U 50 worm gearbox, PAM 63 motor in B5 form, with 11 mm shaft and 140 mm flange in the catalogue.

MOTOR FLANGE FOR U50 GEARBOX PAM71 B14

€24.30
Last one left!
Availability: 1 In stock

STM motor flange for U 50 gearbox, PAM 71 B14 configuration, item no. 2450010521. It matches the IEC 71 motor to the gearbox: catalogue motor shaft 14 mm and flange 105 mm.

MOTOR FLANGE FOR U50 GEARBOX PAM71 B5

€45.80
AVAILABLE
Availability: 7 In stock

STM spare part item no. 2450010511: motor connection flange for the U 50 worm gearbox, PAM 71 motor in B5 form, with 14 mm shaft and 160 mm flange in the catalogue.

MOTOR FLANGE FOR U50 GEARBOX PAM80 B5

€20.60
Last one left!
Availability: 1 In stock

STM motor flange for U 50 gearbox, PAM 80 B5 configuration, item no. MEU50PAM80B5. It matches the IEC 80 motor to the gearbox: catalogue motor shaft 19 mm and flange 200 mm.

MOTOR FLANGE FOR U63 GEARBOX PAM71 B5

€26.50
AVAILABLE
Availability: 5 In stock

STM spare part item no. 2450010556: motor connection flange for the U 63 worm gearbox, PAM 71 motor in B5 form, with 14 mm shaft and 160 mm flange in the catalogue.

MOTOR FLANGE FOR U63 GEARBOX PAM80 B14

€25.90
Last one left!
Availability: 1 In stock

STM motor flange for U 63 gearbox, PAM 80 B14 configuration, item no. 2450010586. It matches the IEC 80 motor to the gearbox: catalogue motor shaft 19 mm and flange 120 mm.

MOTOR FLANGE FOR U63 GEARBOX PAM80 B5

€37.00
COMING SOON
Availability: Out of stock

STM spare part item no. 2450010576: motor connection flange for the U 63 worm gearbox, PAM 80 motor in B5 form, with 19 mm shaft and 200 mm flange in the catalogue.

MOTOR FLANGE FOR U63 GEARBOX PAM90 B14

€22.00
Last one left!
Availability: 1 In stock

STM motor flange for U 63 gearbox, PAM 90 B14 configuration, item no. 2450010606. It matches the IEC 90 motor to the gearbox: catalogue motor shaft 24 mm and flange 140 mm.

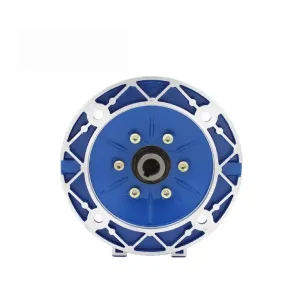

MOTOR FLANGE FOR U63 GEARBOX PAM90 B5

€27.40
Only 2 left!
Availability: 2 In stock

STM spare part item no. 2450010596: motor connection flange for the U 63 worm gearbox, PAM 90 motor in B5 form, with 24 mm shaft and 200 mm flange in the catalogue.

SHORT OUTPUT FLANGE FOR U50 GEARBOX

€15.70
Last one left!
Availability: 1 In stock

STM spare part item no. 1010050821: output flange in the short version for the U 50 worm gearbox, for flange mounting as an alternative to the universal feet.

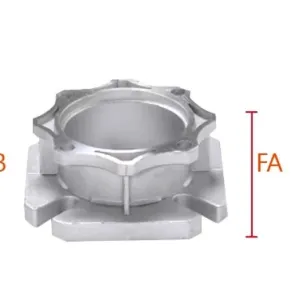

SHORT OUTPUT FLANGE FOR U63 GEARBOX

€14.10
AVAILABLE
Availability: 3 In stock

STM short output flange for U 63 gearbox, item no. 1010050851: used for flange mounting on the slow shaft side; standard hollow output 25 mm for the size.

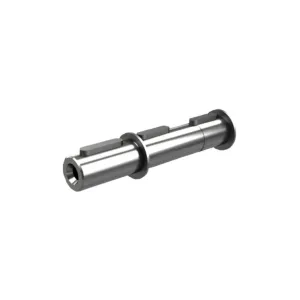

SINGLE OUTPUT SHAFT FOR RMI50 GEARBOX mm.24

€25.70
Last one left!
Availability: 1 In stock

Single slow shaft Ø 24 mm for STM RMI 50 gearbox, item no. 242810011. Supplied as a kit with UNI 6604-69 keys, washers and screws; fits the gearbox with a standard hollow shaft.

SINGLE OUTPUT SHAFT FOR U50 GEARBOX mm.25

€31.50
AVAILABLE
Availability: 5 In stock

Single slow shaft Ø 25 mm for STM U 50 gearbox, item no. 2420810261. Supplied as a kit with UNI 6604-69 keys, washers and screws; fits the gearbox with a standard hollow shaft.

SINGLE OUTPUT SHAFT FOR U63 GEARBOX mm.25

€33.20
AVAILABLE
Availability: 4 In stock

STM spare part item no. 2421210101: 25 mm single-ended slow shaft for the U 63 gearbox. Mounting kit complete with keys, washers and screws, for a hollow shaft of standard diameter.

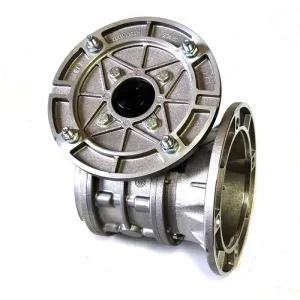

STM RI50 GEARBOX F3 BORE 24

€140.00
COMING SOON
Availability: Out of stock

STM RI 50 worm gearbox with F3 flange, item no. 2181015361: Ø 14 mm input shaft, Ø 24 mm hollow output, die-cast aluminium casing. Ratios selectable among the variants.

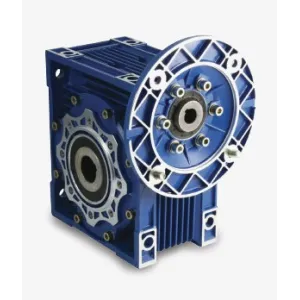

STM U 50 GEARBOX FOR MOTOR, BORE 25

€113.80
Last one left!
Availability: 1 In stock

STM U 50, item no. 2180231681: worm gearbox with cubic casing and 25 mm hollow output, can be matched with IEC, Brushless and NEMA motors. Ratios selectable among the variants.

STM U 63 GEARBOX FOR MOTOR, BORE 25

€204.30
Only 2 left!
Availability: 2 In stock

STM U 63 square worm gearbox for motor, 25 mm output bore, item no. 2180210421. Cubic body with universal mounting; reduction ratio selectable among the variants.

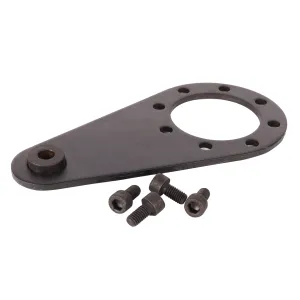

TORQUE ARM FOR U50 GEARBOX

€22.40
Only 2 left!
Availability: 2 In stock

STM accessory item no. 2081010061 for the U 50 worm gearbox: a torque arm for fixing with a tie rod the gearbox mounted on the shaft, standard hollow output 25 mm.

TORQUE ARM FOR U63 GEARBOX

€41.90
Only 2 left!
Availability: 2 In stock

STM torque arm for U 63 gearbox, item no. 2081010251: an accessory for shaft-mounted installation, it lets you fix the gearbox with a tie rod and limits the rotation of the body.
