STM RI50 GEARBOX F3 BORE 24

Code: MERI50100F3
€140.00
VAT excluded: €114.75
Size : 1∶100
Out of stock Usually ships within 10 days

One email when it comes back. No advertising.

Description

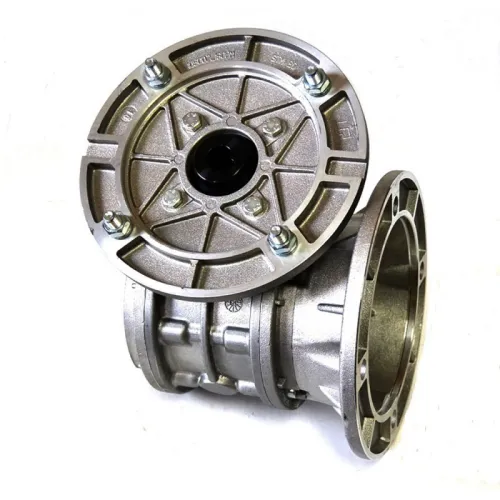

STM RI 50 Worm Gearbox with F3 Flange, Ø 24 mm Bore - Item No. 2181015361


STM RI 50 worm gearbox in the F3 flanged version, with a 14 mm input shaft and a 24 mm output bore. The modular output flange is a feature of the RI-RMI series, together with the die-cast aluminium casing and the ZI profile toothing. Ratios selectable among the variants. Item No. 2181015361.

Technical Specifications

  • Type: Worm gearbox
  • Series: STM RI
  • Size: 50
  • Version: F3 flanged
  • Input shaft: Ø 14 mm
  • Output bore: Ø 24 mm
  • Casing: die-cast aluminium
  • Ratios: selectable among the variants
  • Item No.: 2181015361
  • Brand: STM

Applications and Uses

  • Machines with flange fixing on the slow side
  • Automation and light material handling
  • Spare part for STM gearboxes of the RI series

More details

Brand
STM
Code
MERI50100F3
Manufacturer code
2181015361
