35 mm chrome-plated wheel with expanding rubber fitting, model MDA. It fits into the tube of furniture, trolleys and light equipment. Check the fitting and load capacity before ordering.
Swivel Stem Castors
Swivel Stem Castors
Castors with a stem or a swivel mount, for trolleys, furniture and equipment. You will find Cebora castors with a threaded stem, in rubber, nylon and polyurethane or chrome, from 30 mm diameter, and Tellure Rota castors in rubber and nylon with a swivel through-hole mount, up to 200 mm diameter. There is also a version with a brake. Below the products you will find a guide to choosing the fitting and diameter.
There are 16 products.
35 mm chrome-plated wheel with knurled fitting, model MDL. It is fixed by press-fitting into the structure of furniture, trolleys and light equipment. If in doubt about the right size, write to us.
45 mm chrome-plated wheel with threaded stem, model MDE. It screws into the structure of furniture, trolleys and light equipment. Check the load to be supported before ordering.
Chrome-plated wheel with expanding rubber fitting. Diameter to be confirmed: 45 mm by name, 35 mm by code MDE35. Check the fitting and load capacity before ordering.
Chrome-plated swivel wheel with threaded stem in diameters of 45, 55 and 65 mm. It screws into the structure of furniture, trolleys and light equipment. If in doubt about the right size, write to us.
Nylon and polyurethane wheel with swivel threaded stem in diameters of 40, 50 and 60 mm. The polyurethane tread runs quietly. If in doubt about the right size, write to us.
50 mm nylon and polyurethane wheel with swivel stem and brake, to lock the trolley when it is stationary. Check the load to be supported before ordering. Check the fitting and load capacity before ordering.
Rubber swivel wheel with threaded pin in sizes 30x15, 40x20 and 50x20 mm, quiet and gentle on floors. Check the load to be supported before ordering the size you need.
45 mm rubber wheel with swivel threaded stem, quiet and gentle on floors, for furniture and light trolleys. Before ordering, check the fitting and the load to be supported.
80x24 mm rubber wheel with swivel pin, quiet and gentle on floors, for trolleys and light equipment. Check the fitting and the load capacity before ordering.
40 mm swivel wheel with threaded stem and rubber ring on the tread, quiet and gentle on floors, for furniture and light trolleys. Check the load to be supported before ordering.
Tellure Rota series 68 wheel, monolithic polyamide 6, 70 Shore D (wheel with swivel stainless steel through-hole bracket), item no. 685803. Diameter 125x38 mm with swivel stainless steel through-hole bracket, load capacity 220 daN.
TELLURE ROTA RUBBER CASTOR, STAINLESS STEEL DRILLED BRACKET — D.80 / D.100 / D.125MM
Tellure Rota series 61 wheel, non-staining thermoplastic polyurethane 85 Shore A (wheel with through-hole stainless steel bracket), item no. 617903. Hole spacing 73 mm, hole 12 mm, 180 daN at diameter 125. Bracket type to be confirmed.

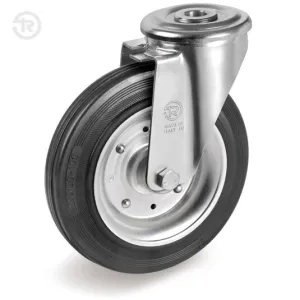

Tellure Rota series 53 wheel, black rubber 80 Shore A (wheel with swivel through-hole bracket), item no. 537903. Swivel through-hole bracket in galvanised sheet steel, diameters from 80 to 200 mm, bracket load capacity 230 daN.
Tellure Rota series 37 wheel, non-marking rubber (wheel with swivel threaded stem), item no. DF/1/7-63. Non-marking rubber wheel for furniture and institutional use, diameters 50 and 60 mm. Width and code to be confirmed.

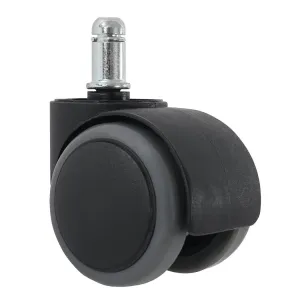

Polymer twin wheel with pin in diameters of 35 and 45 mm. Rolls smoothly on smooth surfaces, for furniture and light trolleys. If in doubt about the right size, write to us.
