Double-ended slow shaft Ø 14 mm for STM RMI 28 gearbox, item no. 2420014011. Supplied as a kit with UNI 6604-69 keys, washers, screws and Seeger rings; fits the gearbox with a standard hollow shaft.
Speed Variators
Speed Variators
STM VMF1 mechanical variators in sizes 63, 71, 80 and 90, STM RMI 28 worm gearboxes for PAM 56 B14 motors, and single and double output shafts, 14 mm, for the same gearbox. These are the parts for adjusting the speed of a machine and for giving the gearbox the output it needs. Below the products you will find a guide to help you choose.
There are 8 products.

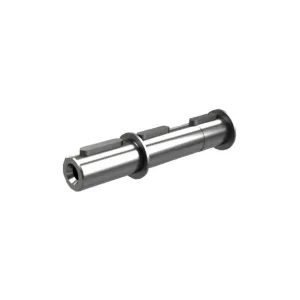

STM spare part item no. 2420010011: 14 mm single-ended slow shaft for the RMI 28 gearbox. Mounting kit complete with keys, washers and screws, for a hollow shaft of standard diameter.
STM RMI 28, item no. 2100211521: gearbox designed for a PAM 56 motor with B14 fitting and a 14 mm hollow output. Reduction ratios selectable among the variants.

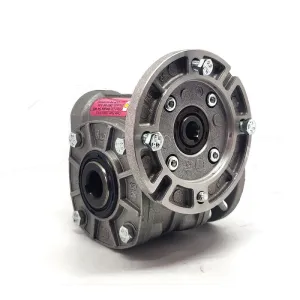

STM RMI 28 worm gearbox for PAM 56 B14 motor, 14 mm output bore, item no. 2100010321. Die-cast aluminium casing, ZI toothing; ratio selectable among the variants.

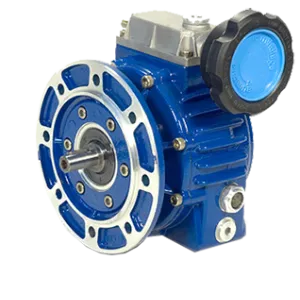

STM VMF1 mechanical variator size 63, item no. 2200020027: continuous adjustment of the output speed with an operating handwheel. Speed range and torque to be confirmed.
STM VMF1 size 71, item no. 2200020037: oil-bath mechanical speed variator, adjusted with a handwheel even while the machine is running. Speed data to be confirmed.
STM VMF1 mechanical variator size 80, item no. 2200000047: continuous adjustment of the output speed with an operating handwheel. Speed range and torque to be confirmed.
STM VMF1 size 90, item no. 22000020057: oil-bath mechanical speed variator, adjusted with a handwheel even while the machine is running. Speed data to be confirmed.
