Double-ended slow shaft Ø 24 mm for STM RMI 50 gearbox, item no. 2420814011. Supplied as a kit with UNI 6604-69 keys, washers, screws and Seeger rings; fits the gearbox with a standard hollow shaft.
RMI/U 40 Gearboxes
RMI/U 40 Gearboxes
STM worm gearboxes and their accessories: U 40, U 50 and U 63 for motor mounting, RMI 50 for PAM 71 B5 motors, RI 28 and RI 50. You will also find motor flanges, short and long output flanges, single and double output shafts, torque arms and new-type half-couplings, each for its own size. Below the products there is a guide to matching the parts.
There are 51 products.
STM spare part item no. 2420414051: 18 mm double-ended slow shaft for the U 40 gearbox. Mounting kit complete with keys, washers and screws plus Seeger rings, for a hollow shaft of standard diameter.
Double-ended slow shaft Ø 25 mm for STM U 50 gearbox, item no. 2420814141. Supplied as a kit with UNI 6604-69 keys, washers, screws and Seeger rings; fits the gearbox with a standard hollow shaft.
STM spare part item no. 2420814151: 25 mm double-ended slow shaft for the U 63 gearbox. Mounting kit complete with keys, washers and screws plus Seeger rings, for a hollow shaft of standard diameter.
STM half coupling for U 40 worm gearbox, 11 mm bore, item no. 2450900621. A spare part for the motor-gearbox coupling; construction type to be confirmed before ordering.
STM spare part item no. 2450900631: half coupling with 14 mm bore for size 40 of the U series gearboxes, to connect motor and gearbox. Type to be confirmed on the part fitted.
STM half coupling for U 50 worm gearbox, 14 mm bore, item no. 2450900421. A spare part for the motor-gearbox coupling; construction type to be confirmed before ordering.
STM spare part item no. 2450900491: half coupling with 19 mm bore for size 50 of the U series gearboxes, to connect motor and gearbox. Type to be confirmed on the part fitted.
STM half coupling for U 63 worm gearbox, 24 mm bore, item no. 2450900341. A spare part for the motor-gearbox coupling; construction type to be confirmed before ordering.
STM new-type half coupling, 11 mm bore, for U 50 gearbox, item no. 2450901361: in quenched and tempered steel, part of the STM motor-gearbox coupling without fretting and with reduced overall dimensions.
STM spare part item no. 2450901341: new-type half coupling with 11 mm bore for U 40 worm gearboxes, in quenched and tempered steel, for the coupling to the motor.
STM new-type half coupling, 14 mm bore, for U 40 gearbox, item no. 2450901351: in quenched and tempered steel, part of the STM motor-gearbox coupling without fretting and with reduced overall dimensions.
STM spare part item no. 2450901371: new-type half coupling with 14 mm bore for U 50 worm gearboxes, in quenched and tempered steel, for the coupling to the motor.
STM new-type half coupling, 19 mm bore, for U 50 gearbox, item no. 2450901381: in quenched and tempered steel, part of the STM motor-gearbox coupling without fretting and with reduced overall dimensions.
STM spare part item no. 2450901396: new-type half coupling with 14 mm bore for U 63 worm gearboxes, in quenched and tempered steel, for the coupling to the motor.
STM new-type half coupling, 19 mm bore, for U 63 gearbox, item no. 2450901406: in quenched and tempered steel, part of the STM motor-gearbox coupling without fretting and with reduced overall dimensions.
STM spare part item no. 2450901416: new-type half coupling with 24 mm bore for U 63 worm gearboxes, in quenched and tempered steel, for the coupling to the motor.
STM spare part item no. 1010050881: output flange in the long version for the U 40 worm gearbox, for flange mounting as an alternative to the universal feet.
STM long output flange for U 50 gearbox, item no. 1010050831: used for flange mounting on the slow shaft side; standard hollow output 25 mm for the size.
STM spare part item no. 1010050861: output flange in the long version for the U 63 worm gearbox, for flange mounting as an alternative to the universal feet.
STM spare part item no. 2450010461: motor connection flange for the U 40 worm gearbox, PAM 63 motor in B14 form, with 11 mm shaft and 90 mm flange in the catalogue.
STM motor flange for U 40 gearbox, PAM 63 B5 configuration, item no. 2450010451. It matches the IEC 63 motor to the gearbox: catalogue motor shaft 11 mm and flange 140 mm.
STM spare part item no. 2450010481: motor connection flange for the U 40 worm gearbox, PAM 71 motor in B14 form, with 14 mm shaft and 105 mm flange in the catalogue.
STM motor flange for U 40 gearbox, PAM 71 B5 configuration, item no. 2450010471. It matches the IEC 71 motor to the gearbox: catalogue motor shaft 14 mm and flange 160 mm.
STM motor flange for U 50 gearbox, PAM 80 B14 configuration, item no. 2450010541. It matches the IEC 80 motor to the gearbox: catalogue motor shaft 19 mm and flange 120 mm.
STM spare part item no. 2450010491: motor connection flange for the U 50 worm gearbox, PAM 63 motor in B5 form, with 11 mm shaft and 140 mm flange in the catalogue.
STM motor flange for U 50 gearbox, PAM 71 B14 configuration, item no. 2450010521. It matches the IEC 71 motor to the gearbox: catalogue motor shaft 14 mm and flange 105 mm.
STM spare part item no. 2450010511: motor connection flange for the U 50 worm gearbox, PAM 71 motor in B5 form, with 14 mm shaft and 160 mm flange in the catalogue.
STM motor flange for U 50 gearbox, PAM 80 B5 configuration, item no. MEU50PAM80B5. It matches the IEC 80 motor to the gearbox: catalogue motor shaft 19 mm and flange 200 mm.
STM spare part item no. 2450010556: motor connection flange for the U 63 worm gearbox, PAM 71 motor in B5 form, with 14 mm shaft and 160 mm flange in the catalogue.
STM motor flange for U 63 gearbox, PAM 80 B14 configuration, item no. 2450010586. It matches the IEC 80 motor to the gearbox: catalogue motor shaft 19 mm and flange 120 mm.
STM spare part item no. 2450010576: motor connection flange for the U 63 worm gearbox, PAM 80 motor in B5 form, with 19 mm shaft and 200 mm flange in the catalogue.
STM motor flange for U 63 gearbox, PAM 90 B14 configuration, item no. 2450010606. It matches the IEC 90 motor to the gearbox: catalogue motor shaft 24 mm and flange 140 mm.
STM spare part item no. 2450010596: motor connection flange for the U 63 worm gearbox, PAM 90 motor in B5 form, with 24 mm shaft and 200 mm flange in the catalogue.

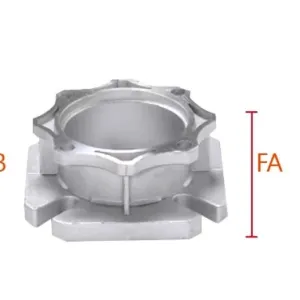

STM short output flange for U 40 gearbox, item no. 1010050871: used for flange mounting on the slow shaft side; standard hollow output 18 mm for the size.
STM spare part item no. 1010050821: output flange in the short version for the U 50 worm gearbox, for flange mounting as an alternative to the universal feet.
STM short output flange for U 63 gearbox, item no. 1010050851: used for flange mounting on the slow shaft side; standard hollow output 25 mm for the size.
Single slow shaft Ø 24 mm for STM RMI 50 gearbox, item no. 242810011. Supplied as a kit with UNI 6604-69 keys, washers and screws; fits the gearbox with a standard hollow shaft.
STM spare part item no. 2420410011: 18 mm single-ended slow shaft for the U 40 gearbox. Mounting kit complete with keys, washers and screws, for a hollow shaft of standard diameter.
Single slow shaft Ø 25 mm for STM U 50 gearbox, item no. 2420810261. Supplied as a kit with UNI 6604-69 keys, washers and screws; fits the gearbox with a standard hollow shaft.
