STM motor flange for U 40 gearbox, PAM 71 B5 configuration, item no. 2450010471. It matches the IEC 71 motor to the gearbox: catalogue motor shaft 14 mm and flange 160 mm.
- Free shipping In Italy on orders from €99.00
- Returns within 14 days How it works
- Secure payments PayPal, cards, Klarna, bank transfer
- WhatsApp support 371 342 6056
Description

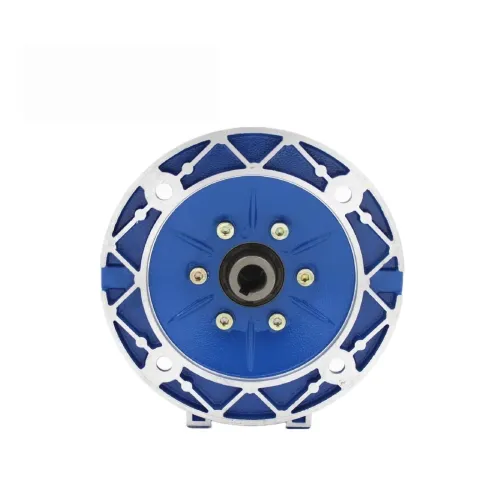

Motor Flange for STM U 40 Gearbox PAM 71 B5 - Item No. 2450010471
STM motor flange for the U 40 worm gearbox, in the PAM 71 configuration with B5 fitting. It is the part that connects the motor to the gearbox: for this size the STM catalogue gives, with the IEC 71 motor, the combination of 14 mm motor shaft and 160 mm flange (B5). The standard configuration of the connection flange has four holes at 45 degrees to the axes. Item No. 2450010471.
Technical Specifications
- Type: Motor flange
- Gearbox: STM U series, size 40
- Motor interface: PAM 71
- Fixing form: B5
- Catalogue motor shaft: 14 mm
- Catalogue motor flange: 160 mm
- Item No.: 2450010471
- Brand: STM
Applications and Uses
- Fitting an IEC 71 motor to the STM U 40 gearbox
- Replacement of a damaged or out-of-tolerance flange
- Spare parts for maintenance of worm gearmotors
More details
- Brand
- STM
- Code
- MEU40PAM71B5
- Manufacturer code
- 2450010471
Recommended accessories and spare parts
STM half coupling for U 40 worm gearbox, 11 mm bore, item no. 2450900621. A spare part for the motor-gearbox coupling; construction type to be confirmed before ordering.
STM spare part item no. 2450900631: half coupling with 14 mm bore for size 40 of the U series gearboxes, to connect motor and gearbox. Type to be confirmed on the part fitted.
STM spare part item no. 2450901341: new-type half coupling with 11 mm bore for U 40 worm gearboxes, in quenched and tempered steel, for the coupling to the motor.
