Chain tensioner pinion with 15 teeth for 3/4 inch pitch chain. It keeps the roller chain under tension and reduces its jumping. Pitch diameter 91.63 mm.
Sprockets & Gears
Sprockets & Gears
SIT roller chain sprockets and chainwheels, in pitches from 3/8" to 1 3/4", with one, two or three rows of teeth. You will also find module sprockets and gears for direct meshing, racks sold by the metre and racks for sliding gates (Comunello too), and chain tensioners. The number of teeth is chosen from the variants on each product page. Below the products there is a guide to choosing pitch and rows.
There are 52 products.
Chain tensioner pinion with 5/8 inch pitch and 17 teeth: an idler wheel to tension and guide the roller chain of the same pitch. Spare part for chain drives.
Chain tensioner pinion with 1/2 inch pitch and 18 teeth: an idler wheel that tensions and guides the roller chain of the same pitch. Spare part for small-size chain drives.
Galvanised module 4 rack with a 30 x 12 mm section, 1 metre long, for sliding gates. It couples with the pinions of gate motors with module 4 and is assembled to cover the travel.

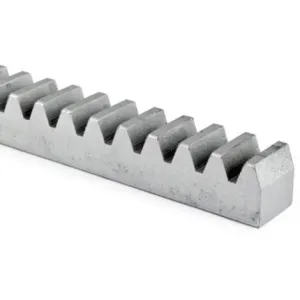

Galvanised module 4 rack with a 22 x 22 mm section, 2 metres long, for sliding gates. It is matched with the pinions of gate motors with module 4 and is assembled to cover the travel.
SIT module 1 gear ring with 75 teeth, toothing for direct meshing with pinions and racks of the same module. Item No. ITCM100, brand SIT. Single version of the wheel, with no size variants to choose.
SIT module 1.5 gear ring with 75 teeth, toothing for direct meshing with pinions and racks of the same module. Item No. ITCM1500, brand SIT. Single version of the wheel, with no size variants to choose.
SIT module 1.5 toothed wheel for meshing with wheels of the same module; the number of teeth is selected among the variants. Item No. ITPM1500, brand SIT, for gear drives.
SIT module 2.5 toothed wheel for meshing with wheels of the same module; the number of teeth is selected among the variants. Item No. ITPM2500, brand SIT, for gear drives.

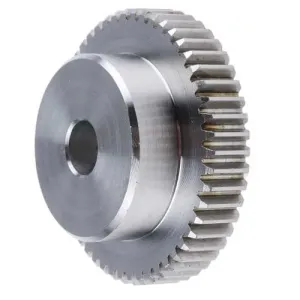

SIT module 3 toothed wheel for meshing with wheels of the same module; the number of teeth is selected among the variants. Item No. ITPM300, brand SIT, for gear drives.
SIT module 4 toothed wheel for meshing with wheels of the same module; the number of teeth is selected among the variants. Item No. ITPM400, brand SIT, for gear drives.
SIT module 5 toothed wheel for meshing with wheels of the same module; the number of teeth is selected among the variants. Item No. ITPM500, brand SIT, for gear drives.
SIT module 2 toothed wheel for meshing with wheels of the same module; the number of teeth is selected among the variants. Item No. ITPM200, brand SIT, for gear drives.
SIT 1" double sprocket for roller chains to DIN 8187 and ISO/R 606, from the ES Elitesystem series: pitch 1" (25.4 mm), with two rows of teeth. Number of teeth: from 13 to 54 teeth.
SIT 1" single sprocket, a toothed wheel with one row of teeth for single roller chain to ISO/R 606. Pitch 25.4 mm, from 11 to 75 teeth: the choice is made among the variants.
SIT 1" triple sprocket for ISO/R 606 roller chain: a toothed wheel with a pitch of 25.4 mm and three rows of teeth. A version of the ES Elitesystem ISO series, with the number of teeth among the variants.

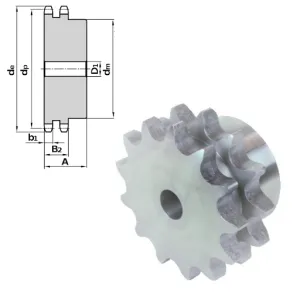

SIT 1 1/2" double sprocket: an ISO/R 606 toothed wheel with two rows of teeth and a pitch of 1 1/2" (38.1 mm), to be matched with DIN 8187 roller chain. Number of teeth selectable among the variants.

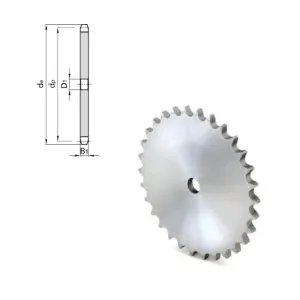

SIT 1 1/2" single sprocket for roller chains to DIN 8187 and ISO/R 606, from the ES Elitesystem series: pitch 1 1/2" (38.1 mm), with one row of teeth. Number of teeth: from 9 to 45 teeth.
SIT 1 1/2" triple sprocket, a toothed wheel with three rows of teeth for triple roller chain to ISO/R 606. Pitch 38.1 mm, 10 teeth: the choice is made among the variants.
SIT 1 1/4" double sprocket for ISO/R 606 roller chain: a toothed wheel with a pitch of 31.75 mm and two rows of teeth. A version of the ES Elitesystem ISO series, with the number of teeth among the variants.
SIT 1/2" double sprocket: an ISO/R 606 toothed wheel with two rows of teeth and a pitch of 1/2" (12.7 mm), to be matched with DIN 8187 roller chain. Number of teeth selectable among the variants.
SIT 1/2" single sprocket for roller chains to DIN 8187 and ISO/R 606, from the ES Elitesystem series: pitch 1/2" (12.7 mm), with one row of teeth. Number of teeth: from 11 to 62 teeth.

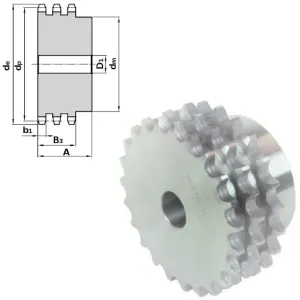

SIT 1/2" triple sprocket, a toothed wheel with three rows of teeth for triple roller chain to ISO/R 606. Pitch 12.7 mm, 38 teeth: the choice is made among the variants.
SIT 3/4" double sprocket for ISO/R 606 roller chain: a toothed wheel with a pitch of 19.05 mm and two rows of teeth. A version of the ES Elitesystem ISO series, with the number of teeth among the variants.

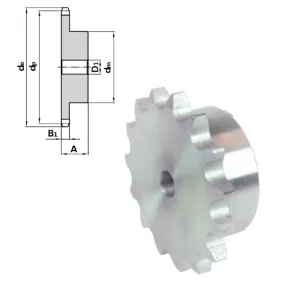

SIT single sprocket with a single row of teeth for roller chain, 3/4 inch pitch (19.05 mm), standard DIN 8187 - ISO/R 606, series 12B-1. Sizes selectable among the variants. Item No. ITC34S00.
SIT single sprocket for roller chain to DIN 8187 and ISO/R 606, with a single row of teeth. Pitch to be confirmed, between 3/4 and 1 1/4 inch. Item No. ITC114S00.

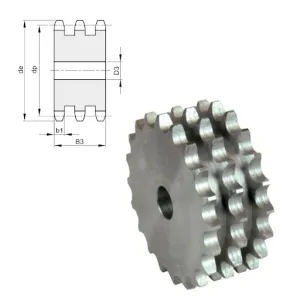

SIT triple sprocket for roller chain, 3/4 inch pitch (19.05 mm), ISO series 12B-3 to DIN 8187 and ISO/R 606. Number of teeth selectable among the variants. Item No. ITC34T00.
For roller chain with a 3/8 inch pitch (9.525 mm): SIT double sprocket of the ISO series 06B-2, DIN 8187 and ISO/R 606, with the number of teeth to be chosen among the variants. Item No. ITC38D00.
SIT single sprocket for roller chain, 3/8 inch pitch (9.525 mm), ISO series 06B-1 to DIN 8187 and ISO/R 606. Number of teeth selectable among the variants. Item No. ITC38S00.

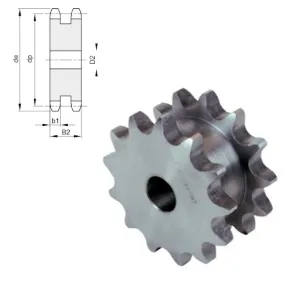

SIT double sprocket with two rows of teeth for roller chain, 5/8 inch pitch (15.875 mm), standard DIN 8187 - ISO/R 606, series 10B-2. Sizes selectable among the variants. Item No. ITC58D00.
SIT single sprocket with a single row of teeth for roller chain, 5/8 inch pitch (15.875 mm), standard DIN 8187 - ISO/R 606, series 10B-1. Sizes selectable among the variants. Item No. ITC58S00.
SIT triple sprocket for roller chain, 5/8 inch pitch (15.875 mm), ISO series 10B-3 to DIN 8187 and ISO/R 606. Number of teeth selectable among the variants. Item No. ITC58T00.

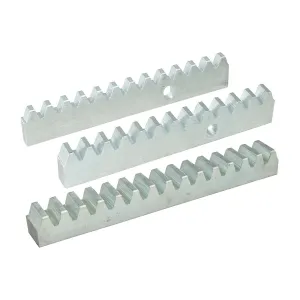

Rack bar for gears, sold by the metre, in four modules and sections: module 2 20x20, 2.5 25x25, 3 30x30 and 4 40x40. For gears that turn rotation into linear motion.
For roller chain with a 1 inch pitch (25.4 mm): SIT double pinion of the ISO series 16B-2, DIN 8187 and ISO/R 606, with the number of teeth to be chosen among the variants. Item No. ITP1D00.
SIT single pinion for roller chain, 1 inch pitch (25.4 mm), ISO series 16B-1 to DIN 8187 and ISO/R 606. Number of teeth selectable among the variants. Item No. ITP1S00.
SIT double pinion with two rows of teeth for roller chain, 1 1/2 inch pitch (38.1 mm), standard DIN 8187 - ISO/R 606, series 24B-2. Sizes selectable among the variants. Item No. ITP112D00.
For roller chain with a 1 1/2 inch pitch (38.1 mm): SIT single pinion of the ISO series 24B-1, DIN 8187 and ISO/R 606, with the number of teeth to be chosen among the variants. Item No. ITP112S00.
For roller chain with a 1 1/4 inch pitch (31.75 mm): SIT single pinion of the ISO series 20B-1, DIN 8187 and ISO/R 606, with the number of teeth to be chosen among the variants. Item No. ITP114S00.
SIT double pinion with two rows of teeth for roller chain, 1 3/4 inch pitch (44.45 mm), standard DIN 8187 - ISO/R 606, series 28B-2. Sizes selectable among the variants. Item No. ITP134D00.
SIT single pinion with a single row of teeth for roller chain, 1 3/4 inch pitch (44.45 mm), standard DIN 8187 - ISO/R 606, series 28B-1. Sizes selectable among the variants. Item No. ITP134S00.
