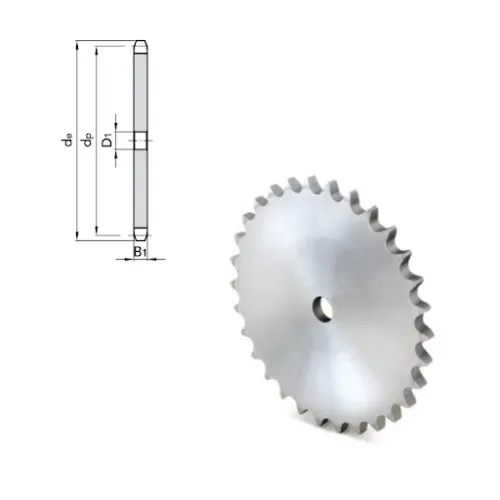

PLATE WHEEL SPROCKET 3/4" SIMPLEX

Code: ITC114Z10S
€14.10
VAT excluded: €11.56
Size : Z 10
In stock 2 pieces in stock Ships in 24/48 hours

Description

SIT Single Sprocket for Roller Chain - Item No. ITC114S00


The SIT single sprocket has a single row of teeth and works with a single roller chain. The pitch of this item is to be confirmed: the catalogue name indicates 3/4 inch, while the code corresponds to 1 1/4 inch: to be confirmed, please ask us before ordering. The toothing complies with DIN 8187 - ISO/R 606, and SIT supplies pinions and sprockets for British Standard chain up to a pitch of two inches. For 3/4 inch the SIT ISO series is 12B (chain 3/4 x 7/16 inch, inner width 11.68 mm); for 1 1/4 inch it is 20B (1 1/4 x 3/4 inch, inner width 19.56 mm). The range goes from 9 to 16 teeth and is selected among the variants. For a long service life SIT recommends a centre distance of between 30 and 50 times the pitch of the chain, with a sag of no more than 2 per cent of the centre distance. To avoid mistakes, we recommend confirming the pitch by measuring your own chain (the distance between the centres of two rollers) before ordering.

Technical Specifications

  • Type: Single sprocket for roller chain
  • Pitch: to be confirmed (3/4 inch or 1 1/4 inch)
  • Standard: DIN 8187 - ISO/R 606
  • Rows of teeth: 1
  • Number of teeth: from 9 to 16, selectable among the variants
  • Item No.: ITC114S00
  • Brand: SIT

Applications and Uses

  • Traversing and lifting systems
  • Chain drives of machine tools and production lines
  • Conveyor belts and light handling
  • Agricultural machinery and processing plants

More details

Brand
SIT
Code
ITC114Z10S
