For roller chain with a 1/2 inch pitch (12.7 mm): SIT single pinion of the ISO series 08B-1, DIN 8187 and ISO/R 606, with the number of teeth to be chosen among the variants. Item No. ITP12S00.
- Free shipping In Italy on orders from €99.00
- Returns within 14 days How it works
- Secure payments PayPal, cards, Klarna, bank transfer
- WhatsApp support 371 342 6056
Description

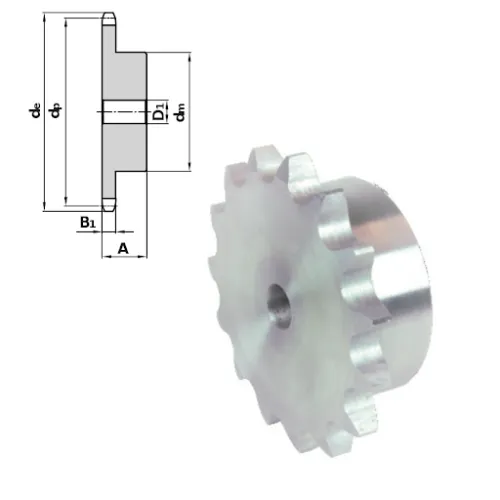

Single Pinion for Roller Chain, 1/2 Inch Pitch - Item No. ITP12S00
The SIT single pinion with a pitch of 1/2 inch has a single row of teeth and works with single roller chains. The number of teeth is chosen among the variants. The SIT catalogue, according to DIN 8187 and ISO/R 606, associates the 1/2 inch pitch with series 08B-1, with chain 1/2 x 5/16 inch. The chain of the 08B series has an inner width of 7.75 mm and a roller 8.51 mm in diameter; the tooth width is 7.2 mm. The material is quality carbon steel (stamped or with welded hub); the SIT catalogue also includes pinions with hardened teeth and in stainless steel. The pitch and inner width of the chain in use should be compared with the data in this sheet before choosing the number of teeth.
Technical Specifications
- Type: Single pinion for roller chain
- Chain pitch: 1/2 inch (12.7 mm)
- SIT ISO series: 08B-1 (1/2 x 5/16 inch)
- Standard: DIN 8187 - ISO/R 606
- Chain inner width: 7.75 mm
- Tooth width: 7.2 mm
- Rows of teeth: 1
- Number of teeth: selectable among the variants
- Material: quality carbon steel
- Item No.: ITP12S00
- Brand: SIT
Applications and Uses
- Spare parts and maintenance for existing chain drives
- Gearmotors and reduction gears with chain final drive
- Traversing and lifting systems
- Chain drives of machine tools and production lines
More details
- Brand
- SIT
- Code
- ITP12Z10S
