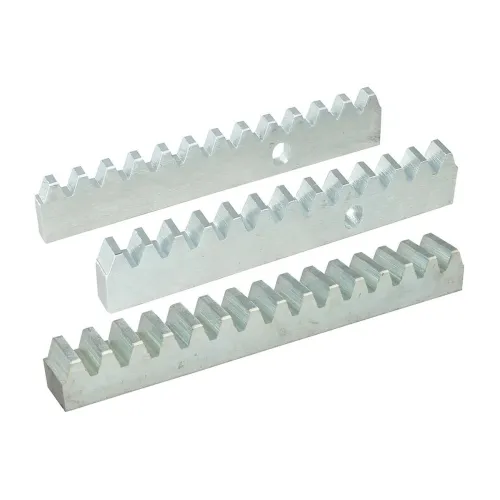

RACK BAR FOR GEARS, SOLD BY THE METRE
Rack bar for gears, sold by the metre, in four modules and sections: module 2 20x20, 2.5 25x25, 3 30x30 and 4 40x40. For gears that turn rotation into linear motion.
- Free shipping In Italy on orders from €99.00
- Returns within 14 days How it works
- Secure payments PayPal, cards, Klarna, bank transfer
- WhatsApp support 371 342 6056
Description
Gear Rack Bar Sold by the Metre
The rack is a toothed bar which, coupled with a pinion, turns rotary motion into linear motion. This bar is sold by the metre and is cut to the length you need for carriages, movements and positioning.
The four versions available have a module and section that go together: 2 with 20 x 20 mm, 2.5 with 25 x 25 mm, 3 with 30 x 30 mm and 4 with 40 x 40 mm. The pinion must have the same module as the rack.
Technical Specifications
- Type: Rack bar, sold by the metre
- Modules and sections: 2 / 20 x 20, 2.5 / 25 x 25, 3 / 30 x 30, 4 / 40 x 40 (mm)
- Material: to be verified
- Matching pinion: same module as the rack
- Item No.: ITCRE00
- Brand: not specified
Applications and Uses
- Carriages and linear movements
- Machine tools and equipment
- Linear guides and positioners
More details
- Code
- IT220201
Recommended accessories and spare parts
Screw-on rack bracket, item no. 263: a fixing element screwed to the metal structure to mount the rack, typical of sliding gate automation. A spare part for installers.
SIT module 2 toothed wheel for meshing with wheels of the same module; the number of teeth is selected among the variants. Item No. ITPM200, brand SIT, for gear drives.
