SIT single pinion for roller chain, 1 inch pitch (25.4 mm), ISO series 16B-1 to DIN 8187 and ISO/R 606. Number of teeth selectable among the variants. Item No. ITP1S00.
- Free shipping In Italy on orders from €99.00
- Returns within 14 days How it works
- Secure payments PayPal, cards, Klarna, bank transfer
- WhatsApp support 371 342 6056
Description

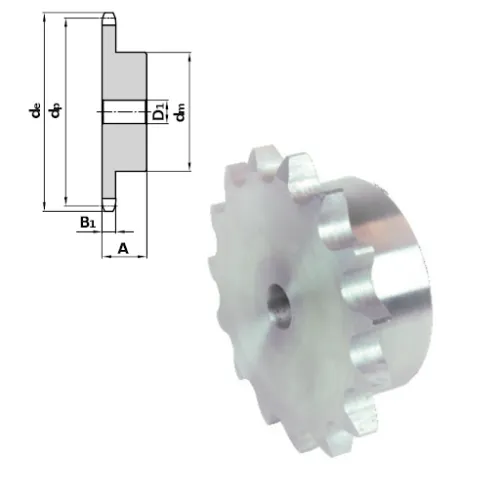

Single Pinion for Roller Chain, 1 Inch Pitch - Item No. ITP1S00
SIT pinion with a single row of teeth, 1 inch pitch, for drives with a single roller chain. The number of teeth is chosen among the variants. The toothing is for roller chains to DIN 8187 - ISO/R 606; the SIT series corresponding to the 1 inch pitch is 16B-1 (1 inch x 17.02 mm). The pitch is 25.4 mm; the chain has an inner width of 17.02 mm and a roller of 15.88 mm, and the tooth is 16.2 mm wide. The material is quality carbon steel (stamped or with welded hub); the SIT catalogue also includes pinions with hardened teeth and in stainless steel. Before ordering it is worth checking the pitch and inner width of your own chain: the same pitch does not always mean the same width.
Technical Specifications
- Type: Single pinion for roller chain
- Chain pitch: 1 inch (25.4 mm)
- SIT ISO series: 16B-1 (1 inch x 17.02 mm)
- Standard: DIN 8187 - ISO/R 606
- Chain inner width: 17.02 mm
- Tooth width: 16.2 mm
- Rows of teeth: 1
- Number of teeth: selectable among the variants
- Material: quality carbon steel
- Item No.: ITP1S00
- Brand: SIT
Applications and Uses
- Agricultural machinery and processing plants
- Spare parts and maintenance for existing chain drives
- Gearmotors and reduction gears with chain final drive
More details
- Brand
- SIT
- Code
- ITP1Z10S
