SIT single sprocket with a single row of teeth for roller chain, 3/4 inch pitch (19.05 mm), standard DIN 8187 - ISO/R 606, series 12B-1. Sizes selectable among the variants. Item No. ITC34S00.
- Free shipping In Italy on orders from €99.00
- Returns within 14 days How it works
- Secure payments PayPal, cards, Klarna, bank transfer
- WhatsApp support 371 342 6056
Description

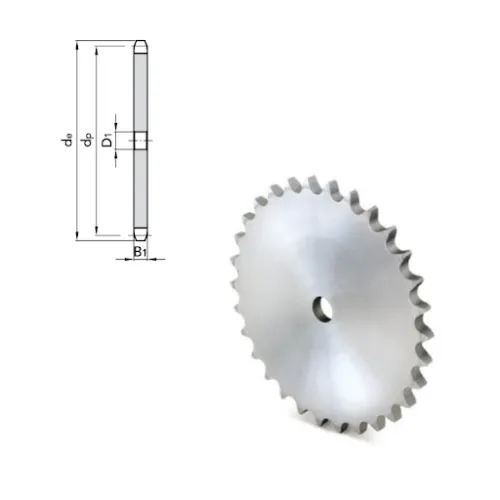

Single Sprocket for Roller Chain, 3/4 Inch Pitch - Item No. ITC34S00
With a single row of teeth and a pitch of 3/4 inch, the SIT single sprocket couples with the single roller chain of the same pitch. The toothing is for roller chains to DIN 8187 - ISO/R 606; the SIT series corresponding to the 3/4 inch pitch is 12B-1 (3/4 x 7/16 inch). The pitch is 19.05 mm; the chain has an inner width of 11.68 mm and a roller of 12.07 mm, and the tooth is 11.1 mm wide. The manufacturer's range includes pinions and sprockets for British Standard chain up to two inches of pitch; for special requirements, supply to order is available. The number of teeth, from 13 to 60, is selected among the variants. Before ordering it is worth checking the pitch and inner width of your own chain: the same pitch does not always mean the same width.
Technical Specifications
- Type: Single sprocket for roller chain
- Chain pitch: 3/4 inch (19.05 mm)
- SIT ISO series: 12B-1 (3/4 x 7/16 inch)
- Standard: DIN 8187 - ISO/R 606
- Chain inner width: 11.68 mm
- Tooth width: 11.1 mm
- Rows of teeth: 1
- Number of teeth: from 13 to 60, selectable among the variants
- Item No.: ITC34S00
- Brand: SIT
Applications and Uses
- Agricultural machinery and processing plants
- Spare parts and maintenance for existing chain drives
- Gearmotors and reduction gears with chain final drive
More details
- Brand
- SIT
- Code
- ITC34Z13S
