SPROCKET 1/2" DUPLEX

Code: ITP12Z10D
€4.40
VAT excluded: €3.61
Size : Z 10
In stock 1 piece in stock Ships in 24/48 hours

Description

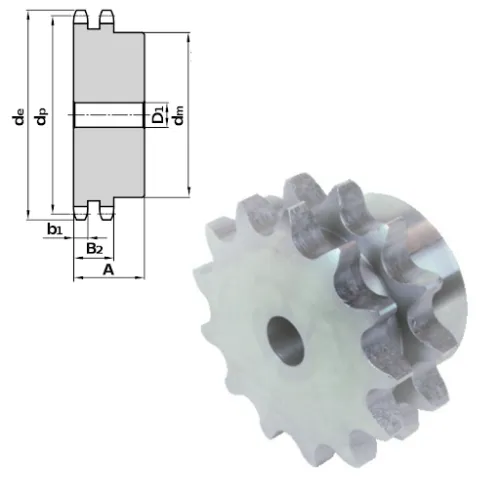

Double Pinion for Roller Chain, 1/2 Inch Pitch - Item No. ITP12D00


SIT pinion with a double row of teeth, 1/2 inch pitch, designed for double roller chains and for drives that call for more load capacity than a single chain. Reference standards: DIN 8187 and ISO/R 606. For the 1/2 inch pitch the manufacturer's ISO range provides chain 08B-2, 1/2 x 5/16 inch. The chain of the 08B series has an inner width of 7.75 mm and a roller 8.51 mm in diameter for each row. The material is quality carbon steel (stamped or with welded hub); the SIT catalogue also includes pinions with hardened teeth and in stainless steel. The number of teeth is chosen among the variants. The pitch and inner width of the chain in use should be compared with the data in this sheet before choosing the number of teeth.

Technical Specifications

  • Type: Double pinion for roller chain
  • Chain pitch: 1/2 inch (12.7 mm)
  • SIT ISO series: 08B-2 (1/2 x 5/16 inch)
  • Standard: DIN 8187 - ISO/R 606
  • Chain inner width: 7.75 mm
  • Rows of teeth: 2
  • Number of teeth: selectable among the variants
  • Material: quality carbon steel
  • Item No.: ITP12D00
  • Brand: SIT

Applications and Uses

  • Replacement of pinions and sprockets on two-row roller chains
  • Industrial drives with double chain transmission
  • Conveyors and handling of heavier loads

More details

Brand
SIT
Code
ITP12Z10D
