SPROCKET 5/8" TRIPLEX

Code: ITP58Z10T
€12.00
VAT excluded: €9.84
Size : Z 10
In stock 3 pieces in stock Ships in 24/48 hours

Description

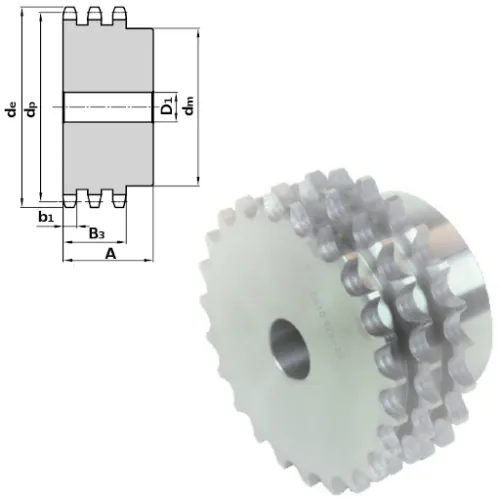

Triple Pinion for Roller Chain, 5/8 Inch Pitch - Item No. ITP58T00


The SIT triple pinion with a pitch of 5/8 inch has three rows of teeth and works with triple roller chains, that is, chains with three rows of rollers. The SIT catalogue, according to DIN 8187 and ISO/R 606, associates the 5/8 inch pitch with series 10B-3, with chain 5/8 x 3/8 inch. The chain of the 10B series has an inner width of 9.65 mm and a roller 10.16 mm in diameter for each row. SIT makes its pinions in quality carbon steel, stamped or with welded hub, and provides hardened teeth for the most severe conditions. The variants allow you to choose the number of teeth. Before ordering it is worth checking the pitch and inner width of your own chain: the same pitch does not always mean the same width.

Technical Specifications

  • Type: Triple pinion for roller chain
  • Chain pitch: 5/8 inch (15.875 mm)
  • SIT ISO series: 10B-3 (5/8 x 3/8 inch)
  • Standard: DIN 8187 - ISO/R 606
  • Chain inner width: 9.65 mm
  • Rows of teeth: 3
  • Number of teeth: selectable among the variants
  • Material: quality carbon steel
  • Item No.: ITP58T00
  • Brand: SIT

Applications and Uses

  • Heavy machinery and lifting systems
  • Heavily loaded conveyors and production lines
  • Triple-chain drives for high loads

More details

Brand
SIT
Code
ITP58Z10T
