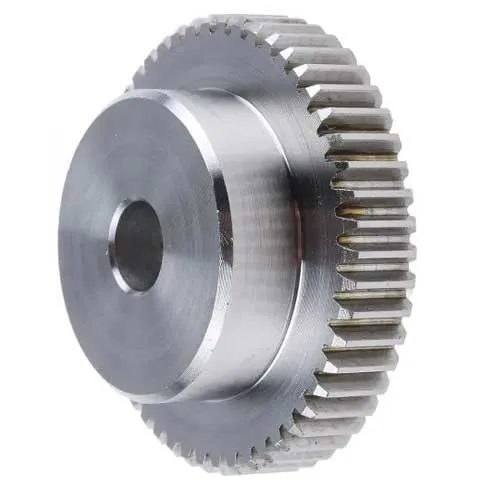

MODULE PINION, PITCH 5

Code: ITPM5Z19
€46.90
VAT excluded: €38.44
Size : Z 19
In stock 1 piece in stock Ships in 24/48 hours

Description

Module 5 Pinion - Item No. ITPM500


The module 5 pinion is a cylindrical toothed wheel designed to mesh with gear rings or racks of the same module; the number of teeth is chosen among the variants. The module is the parameter that defines the size of the tooth: two wheels mesh correctly only if they have the same module. The material, tooth width, bore and treatment are not specified for this item: they must be requested from the supplier before purchase, especially if the wheel has to work under load.

Technical Specifications

  • Type: cylindrical toothed wheel, pinion with module toothing
  • Module: 5
  • Number of teeth: selectable among the variants
  • Toothing: for meshing with wheels of the same module
  • Material: to be confirmed
  • Item No.: ITPM500
  • Brand: SIT

Applications and Uses

  • Toothed gear drives with wheels of the same module
  • Coupling with racks for linear movements
  • Spare parts for existing machines and automatic systems

More details

Brand
SIT
Code
ITPM5Z19
