SPROCKET 1" DUPLEX

Code: ITP1Z10D
€28.70
VAT excluded: €23.52
Size : Z 10
In stock 1 piece in stock Ships in 24/48 hours

Description

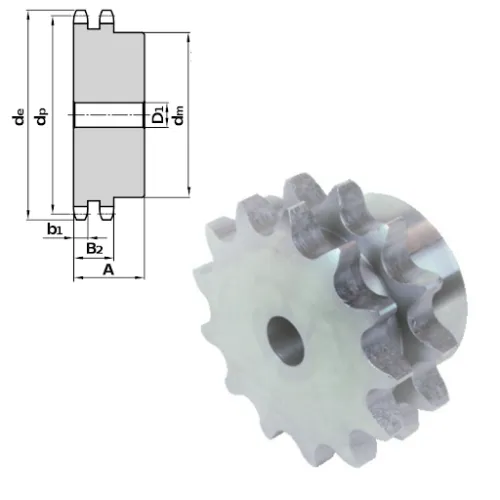

Double Pinion for Roller Chain, 1 Inch Pitch - Item No. ITP1D00


SIT pinion with a double row of teeth, 1 inch pitch, designed for double roller chains and for drives that call for more load capacity than a single chain. The SIT catalogue, according to DIN 8187 and ISO/R 606, associates the 1 inch pitch with series 16B-2, with chain 1 inch x 17.02 mm. The chain of the 16B series has an inner width of 17.02 mm and a roller 15.88 mm in diameter for each row. The number of teeth is chosen among the variants, from 10 to 38. For a long service life SIT recommends a centre distance of between 30 and 50 chain pitches and a sag of no more than 2 per cent of the centre distance. Before ordering it is worth checking the pitch and inner width of your own chain: the same pitch does not always mean the same width.

Technical Specifications

  • Type: Double pinion for roller chain
  • Chain pitch: 1 inch (25.4 mm)
  • SIT ISO series: 16B-2 (1 inch x 17.02 mm)
  • Standard: DIN 8187 - ISO/R 606
  • Chain inner width: 17.02 mm
  • Rows of teeth: 2
  • Number of teeth: from 10 to 38, selectable among the variants
  • Material: quality carbon steel
  • Item No.: ITP1D00
  • Brand: SIT

Applications and Uses

  • Replacement of pinions and sprockets on two-row roller chains
  • Industrial drives with double chain transmission
  • Conveyors and handling of heavier loads
  • Transmissions with double chain to increase load capacity
