SPROCKET 1.1/4" SIMPLEX

Code: ITP114Z10S
€19.60
VAT excluded: €16.07
Size : Z 10
In stock 1 piece in stock Ships in 24/48 hours

Description

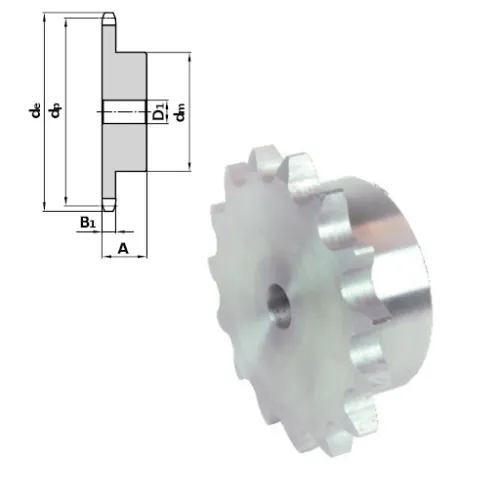

Single Pinion for Roller Chain, 1 1/4 Inch Pitch - Item No. ITP114S00


A single-row toothed wheel for single roller chains: this SIT pinion, with a pitch of 1 1/4 inch, transmits motion between two shafts with a single chain. The SIT catalogue, according to DIN 8187 and ISO/R 606, associates the 1 1/4 inch pitch with series 20B-1, with chain 1 1/4 x 3/4 inch. The chain of the 20B series has an inner width of 19.56 mm and a roller 19.05 mm in diameter; the tooth width is 18.5 mm. SIT makes its pinions in quality carbon steel, stamped or with welded hub, and provides hardened teeth for the most severe conditions. The number of teeth is chosen among the variants, from 8 to 25. The pitch and inner width of the chain in use should be compared with the data in this sheet before choosing the number of teeth.

Technical Specifications

  • Type: Single pinion for roller chain
  • Chain pitch: 1 1/4 inch (31.75 mm)
  • SIT ISO series: 20B-1 (1 1/4 x 3/4 inch)
  • Standard: DIN 8187 - ISO/R 606
  • Chain inner width: 19.56 mm
  • Tooth width: 18.5 mm
  • Rows of teeth: 1
  • Number of teeth: from 8 to 25, selectable among the variants
  • Material: quality carbon steel
  • Item No.: ITP114S00
  • Brand: SIT

Applications and Uses

  • Conveyor belts and light handling
  • Agricultural machinery and processing plants
  • Spare parts and maintenance for existing chain drives
  • Gearmotors and reduction gears with chain final drive

More details

Brand
SIT
Code
ITP114Z10S
