SPROCKET 3/4" SIMPLEX

Code: ITP34Z10S
€7.30
VAT excluded: €5.98
Size : Z 10
In stock 5 pieces in stock Ships in 24/48 hours

Description

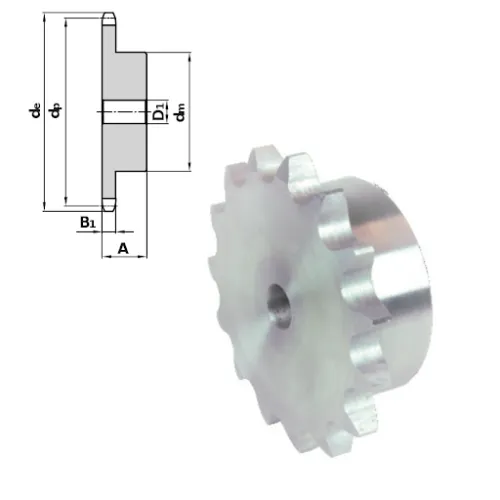

Single Pinion for Roller Chain, 3/4 Inch Pitch - Item No. ITP34S00


A single-row toothed wheel for single roller chains: this SIT pinion, with a pitch of 3/4 inch, transmits motion between two shafts with a single chain. SIT makes its pinions in quality carbon steel, stamped or with welded hub, and provides hardened teeth for the most severe conditions. The construction follows DIN 8187 and ISO/R 606: in the SIT ISO series the 3/4 inch pitch corresponds to chain 12B-1 (3/4 x 7/16 inch). The pitch is 19.05 mm; the chain has an inner width of 11.68 mm and a roller of 12.07 mm, and the tooth is 11.1 mm wide. The number of teeth is chosen among the variants. When assembling, the ideal centre distance is between 30 and 50 chain pitches; the tensioner pinion, if present, should have at least 17 teeth.

Technical Specifications

  • Type: Single pinion for roller chain
  • Chain pitch: 3/4 inch (19.05 mm)
  • SIT ISO series: 12B-1 (3/4 x 7/16 inch)
  • Standard: DIN 8187 - ISO/R 606
  • Chain inner width: 11.68 mm
  • Tooth width: 11.1 mm
  • Rows of teeth: 1
  • Number of teeth: selectable among the variants
  • Material: quality carbon steel
  • Item No.: ITP34S00
  • Brand: SIT

Applications and Uses

  • Traversing and lifting systems
  • Chain drives of machine tools and production lines
  • Conveyor belts and light handling
  • Agricultural machinery and processing plants

More details

Brand
SIT
Code
ITP34Z10S
