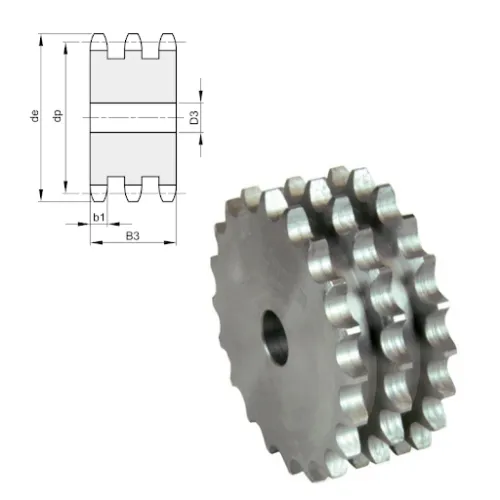

PLATE WHEEL SPROCKET 1.1/2" TRIPLEX

Code: ITC112Z10T
€135.50
VAT excluded: €111.07
Size : Z 10
Out of stock Usually ships within 10 days

One email when it comes back. No advertising.

Description

1 1/2" Triple Sprocket


Pitch 1 1/2", three rows of teeth: the 1 1/2" triple sprocket is used to transmit motion with a triple roller chain of the same pitch. The chain and the wheel must have the same pitch and a matching number of rows.

For a long-lasting drive, SIT recommends a centre distance of between 30 and 50 times the pitch of the chain, with a sag of no more than 2 per cent of the centre distance. It is available with 10 teeth. Chain and sprocket should always be checked together before assembly.

Technical Specifications

  • Type: Triple sprocket for roller chain
  • Pitch: 38.1 mm
  • Matching chain: 1 1/2" x 1"
  • Reference standards: ISO/R 606, DIN 8187
  • Number of rows: 3
  • Number of teeth: 10 teeth
  • Item No.: ITC112T00
  • Brand: SIT

Applications and Uses

  • Chain drives
  • Belts and conveyors
  • Industrial machinery
