SPROCKET 5/8" DUPLEX

Code: ITP58Z10D
€7.10
VAT excluded: €5.82
Size : Z 10
In stock 5 pieces in stock Ships in 24/48 hours

Description

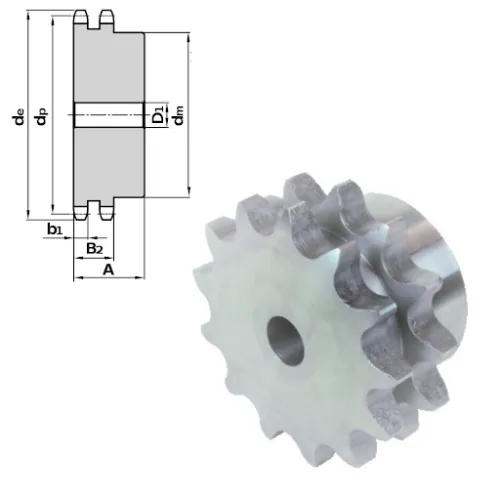

Double Pinion for Roller Chain, 5/8 Inch Pitch - Item No. ITP58D00


A two-row toothed wheel for double chains: this SIT pinion, with a pitch of 5/8 inch, spreads the effort over two rows of rollers. The construction follows DIN 8187 and ISO/R 606: in the SIT ISO series the 5/8 inch pitch corresponds to chain 10B-2 (5/8 x 3/8 inch). Reference data: chain inner width 9.65 mm and roller diameter 10.16 mm. The number of teeth is chosen among the variants. For a long service life SIT recommends a centre distance of between 30 and 50 chain pitches and a sag of no more than 2 per cent of the centre distance. When choosing, compare the pitch, the inner width of the chain and the number of teeth; the pitch alone is not enough to identify the series.

Technical Specifications

  • Type: Double pinion for roller chain
  • Chain pitch: 5/8 inch (15.875 mm)
  • SIT ISO series: 10B-2 (5/8 x 3/8 inch)
  • Standard: DIN 8187 - ISO/R 606
  • Chain inner width: 9.65 mm
  • Rows of teeth: 2
  • Number of teeth: selectable among the variants
  • Material: quality carbon steel
  • Item No.: ITP58D00
  • Brand: SIT

Applications and Uses

  • Processing machines and plants with high torque
  • Replacement of pinions and sprockets on two-row roller chains
  • Industrial drives with double chain transmission

More details

Brand
SIT
Code
ITP58Z10D
