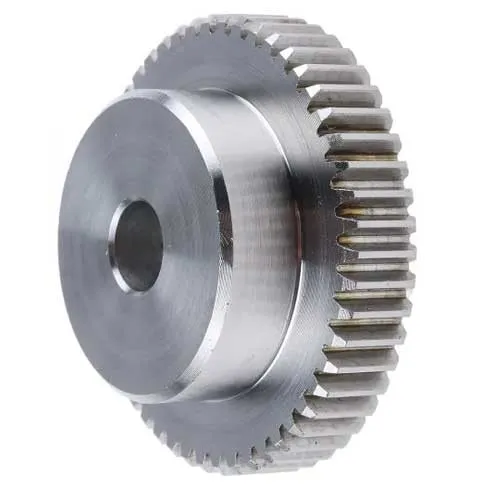

MODULE PINION, PITCH 4

Code: ITPM4Z12
€16.30
VAT excluded: €13.36
Size : Z 12
Out of stock Usually ships within 10 days

One email when it comes back. No advertising.

Description

Module 4 Pinion - Item No. ITPM400


SIT pinion with module 4 toothing: it couples by direct meshing with toothed wheels of the same module, with the number of teeth chosen among the variants. For the coupling, the module and the number of teeth are what count; wheels of a different module cannot mesh with each other. The overall dimensions, the bore and the material depend on the version chosen and must be confirmed with the supplier before use in a drive under load.

Technical Specifications

  • Type: cylindrical toothed wheel, pinion with module toothing
  • Module: 4
  • Number of teeth: selectable among the variants
  • Toothing: for meshing with wheels of the same module
  • Material: to be confirmed
  • Item No.: ITPM400
  • Brand: SIT

Applications and Uses

  • Toothed gear drives with wheels of the same module
  • Coupling with racks for linear movements
  • Spare parts for existing machines and automatic systems

More details

Brand
SIT
Code
ITPM4Z12
Manufacturer code
ITPM4Z12
