SIT module 2.5 toothed wheel for meshing with wheels of the same module; the number of teeth is selected among the variants. Item No. ITPM2500, brand SIT, for gear drives.
- Free shipping In Italy on orders from €99.00
- Returns within 14 days How it works
- Secure payments PayPal, cards, Klarna, bank transfer
- WhatsApp support 371 342 6056
Description

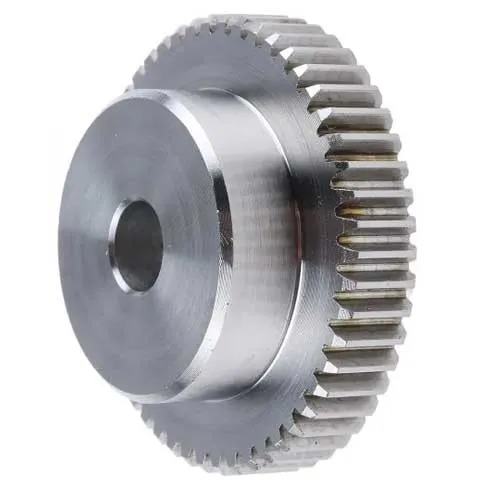

Module 2.5 Pinion - Item No. ITPM2500
The module 2.5 pinion is a cylindrical toothed wheel designed to mesh with gear rings or racks of the same module; the number of teeth is chosen among the variants. The module is the parameter that defines the size of the tooth: two wheels mesh correctly only if they have the same module. The overall dimensions, the bore and the material depend on the version chosen and must be confirmed with the supplier before use in a drive under load.
Technical Specifications
- Type: cylindrical toothed wheel, pinion with module toothing
- Module: 2.5
- Number of teeth: selectable among the variants
- Toothing: for meshing with wheels of the same module
- Material: to be confirmed
- Item No.: ITPM2500
- Brand: SIT
Applications and Uses
- Toothed gear drives with wheels of the same module
- Coupling with racks for linear movements
- Spare parts for existing machines and automatic systems
More details
- Brand
- SIT
- Code
- ITPM25Z10
