PLATE WHEEL SPROCKET 3/8" SIMPLEX

Code: ITC38Z10S
€1.60
VAT excluded: €1.31
Size : Z 10
In stock 21 pieces in stock Ships in 24/48 hours

Description

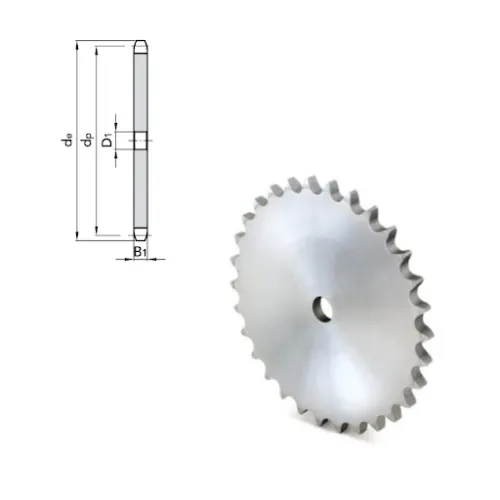

Single Sprocket for Roller Chain, 3/8 Inch Pitch - Item No. ITC38S00


The SIT single sprocket with a pitch of 3/8 inch has a single row of teeth and works with a single roller chain. The number of teeth is chosen among the variants, from 10 to 60. The construction follows DIN 8187 and ISO/R 606: in the SIT ISO series the 3/8 inch pitch corresponds to chain 06B-1 (3/8 x 7/32 inch). The chain of the 06B series has an inner width of 5.72 mm and a roller 6.35 mm in diameter; the tooth width is 5.3 mm. SIT pinions and sprockets for British Standard chain cover pitches up to two inches; for heavy-duty applications the manufacturer also provides hardened toothing. The pitch and inner width of the chain in use should be compared with the data in this sheet before choosing the number of teeth.

Technical Specifications

  • Type: Single sprocket for roller chain
  • Chain pitch: 3/8 inch (9.525 mm)
  • SIT ISO series: 06B-1 (3/8 x 7/32 inch)
  • Standard: DIN 8187 - ISO/R 606
  • Chain inner width: 5.72 mm
  • Tooth width: 5.3 mm
  • Rows of teeth: 1
  • Number of teeth: from 10 to 60, selectable among the variants
  • Item No.: ITC38S00
  • Brand: SIT

Applications and Uses

  • Gearmotors and reduction gears with chain final drive
  • Traversing and lifting systems
  • Chain drives of machine tools and production lines

More details

Brand
SIT
Code
ITC38Z10S
