SPROCKET 3/4" DUPLEX

Code: ITP34Z10D
€11.60
VAT excluded: €9.51
Size : Z 10
In stock 4 pieces in stock Ships in 24/48 hours

Description

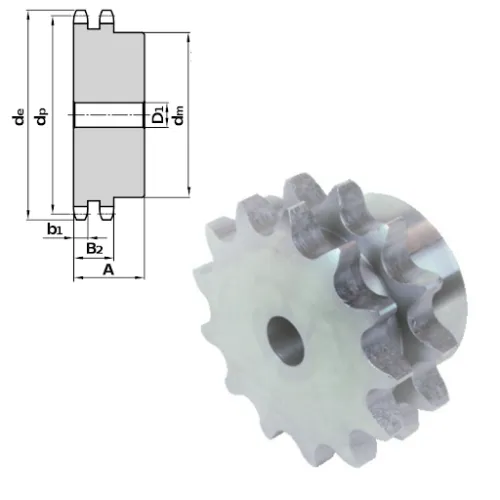

Double Pinion for Roller Chain, 3/4 Inch Pitch - Item No. ITP34D00


SIT pinion with a double row of teeth, 3/4 inch pitch, designed for double roller chains and for drives that call for more load capacity than a single chain. The toothing is for roller chains to DIN 8187 - ISO/R 606; the SIT series corresponding to the 3/4 inch pitch is 12B-2 (3/4 x 7/16 inch). The chain of the 12B series has an inner width of 11.68 mm and a roller 12.07 mm in diameter for each row. The number of teeth can be selected among the variants. For a long service life SIT recommends a centre distance of between 30 and 50 chain pitches and a sag of no more than 2 per cent of the centre distance. When choosing, compare the pitch, the inner width of the chain and the number of teeth; the pitch alone is not enough to identify the series.

Technical Specifications

  • Type: Double pinion for roller chain
  • Chain pitch: 3/4 inch (19.05 mm)
  • SIT ISO series: 12B-2 (3/4 x 7/16 inch)
  • Standard: DIN 8187 - ISO/R 606
  • Chain inner width: 11.68 mm
  • Rows of teeth: 2
  • Number of teeth: selectable among the variants
  • Material: quality carbon steel
  • Item No.: ITP34D00
  • Brand: SIT

Applications and Uses

  • Transmissions with double chain to increase load capacity
  • Processing machines and plants with high torque
  • Replacement of pinions and sprockets on two-row roller chains

More details

Brand
SIT
Code
ITP34Z10D
