PLATE WHEEL SPROCKET 5/8" SIMPLEX

Code: ITC58Z10S
€2.00
VAT excluded: €1.64
Size : Z 10
In stock 2 pieces in stock Ships in 24/48 hours

Description

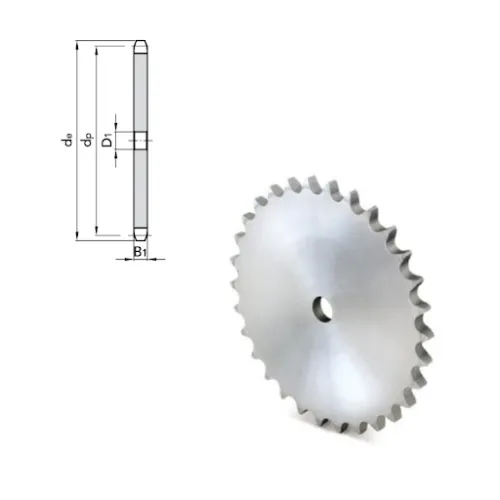

Single Sprocket for Roller Chain, 5/8 Inch Pitch - Item No. ITC58S00


SIT sprocket with a single row of teeth, 5/8 inch pitch, for drives with a single roller chain. Reference standards: DIN 8187 and ISO/R 606. For the 5/8 inch pitch the manufacturer's ISO range provides chain 10B-1, 5/8 x 3/8 inch. The chain of the 10B series has an inner width of 9.65 mm and a roller 10.16 mm in diameter; the tooth width is 9.1 mm. SIT pinions and sprockets for British Standard chain cover pitches up to two inches; for heavy-duty applications the manufacturer also provides hardened toothing. The number of teeth, from 10 to 95, is selected among the variants. Before ordering it is worth checking the pitch and inner width of your own chain: the same pitch does not always mean the same width.

Technical Specifications

  • Type: Single sprocket for roller chain
  • Chain pitch: 5/8 inch (15.875 mm)
  • SIT ISO series: 10B-1 (5/8 x 3/8 inch)
  • Standard: DIN 8187 - ISO/R 606
  • Chain inner width: 9.65 mm
  • Tooth width: 9.1 mm
  • Rows of teeth: 1
  • Number of teeth: from 10 to 95, selectable among the variants
  • Item No.: ITC58S00
  • Brand: SIT

Applications and Uses

  • Chain drives of machine tools and production lines
  • Conveyor belts and light handling
  • Agricultural machinery and processing plants

More details

Brand
SIT
Code
ITC58Z10S
