SIT triple sprocket for roller chain, 3/4 inch pitch (19.05 mm), ISO series 12B-3 to DIN 8187 and ISO/R 606. Number of teeth selectable among the variants. Item No. ITC34T00.
- Free shipping In Italy on orders from €99.00
- Returns within 14 days How it works
- Secure payments PayPal, cards, Klarna, bank transfer
- WhatsApp support 371 342 6056
Description

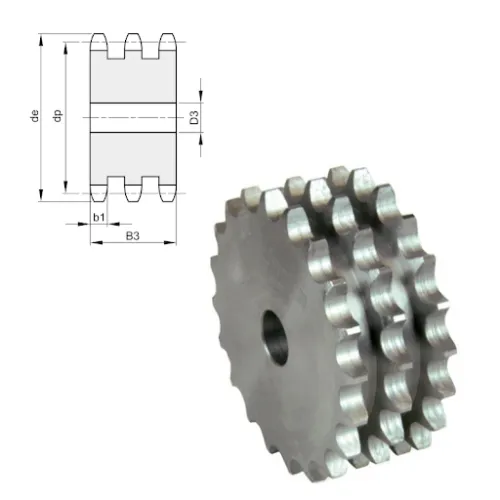

Triple Sprocket for Roller Chain, 3/4 Inch Pitch - Item No. ITC34T00
A three-row toothed wheel for triple chains: this SIT sprocket, with a pitch of 3/4 inch, spreads the load over three rows of rollers. The construction follows DIN 8187 and ISO/R 606: in the SIT ISO series the 3/4 inch pitch corresponds to chain 12B-3 (3/4 x 7/16 inch). The chain of the 12B series has an inner width of 11.68 mm and a roller 12.07 mm in diameter for each row. SIT supplies sprockets and pinions for British Standard chain up to a pitch of two inches; other types outside the catalogue are requested from the technical office. The range goes from 18 to 45 teeth and is selected among the variants. When choosing, compare the pitch, the inner width of the chain and the number of teeth; the pitch alone is not enough to identify the series.
Technical Specifications
- Type: Triple sprocket for roller chain
- Chain pitch: 3/4 inch (19.05 mm)
- SIT ISO series: 12B-3 (3/4 x 7/16 inch)
- Standard: DIN 8187 - ISO/R 606
- Chain inner width: 11.68 mm
- Rows of teeth: 3
- Number of teeth: from 18 to 45, selectable among the variants
- Item No.: ITC34T00
- Brand: SIT
Applications and Uses
- Industrial power drives with several rows of rollers
- Replacement of sprockets on three-row chains
- Heavy machinery and lifting systems
- Heavily loaded conveyors and production lines
More details
- Brand
- SIT
- Code
- ITC34Z18T
