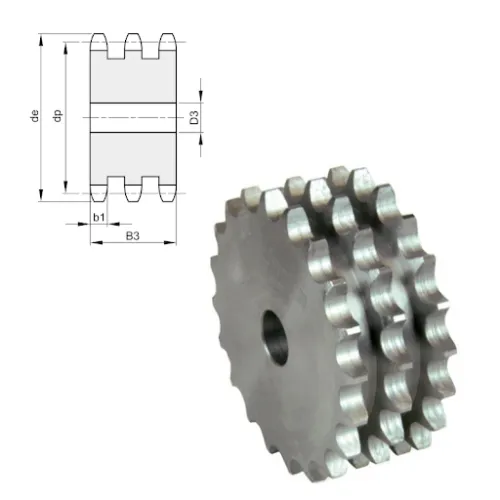

PLATE WHEEL SPROCKET 5/8" TRIPLEX

Code: ITC58Z12T
€10.60
VAT excluded: €8.69
Size : Z 12
In stock 1 piece in stock Ships in 24/48 hours

Description

Triple Sprocket for Roller Chain, 5/8 Inch Pitch - Item No. ITC58T00


SIT sprocket with three rows of teeth, 5/8 inch pitch, for triple roller chains in the most demanding drives. The number of teeth is 12. The SIT catalogue, according to DIN 8187 and ISO/R 606, associates the 5/8 inch pitch with series 10B-3, with chain 5/8 x 3/8 inch. The pitch is 15.875 mm; the chain has an inner width of 9.65 mm and a roller of 10.16 mm. The manufacturer's range includes pinions and sprockets for British Standard chain up to two inches of pitch; for special requirements, supply to order is available. The pitch and inner width of the chain in use should be compared with the data in this sheet before choosing the number of teeth.

Technical Specifications

  • Type: Triple sprocket for roller chain
  • Chain pitch: 5/8 inch (15.875 mm)
  • SIT ISO series: 10B-3 (5/8 x 3/8 inch)
  • Standard: DIN 8187 - ISO/R 606
  • Chain inner width: 9.65 mm
  • Rows of teeth: 3
  • Number of teeth: 12
  • Item No.: ITC58T00
  • Brand: SIT

Applications and Uses

  • Triple-chain drives for high loads
  • Industrial power drives with several rows of rollers
  • Replacement of sprockets on three-row chains
  • Heavy machinery and lifting systems
