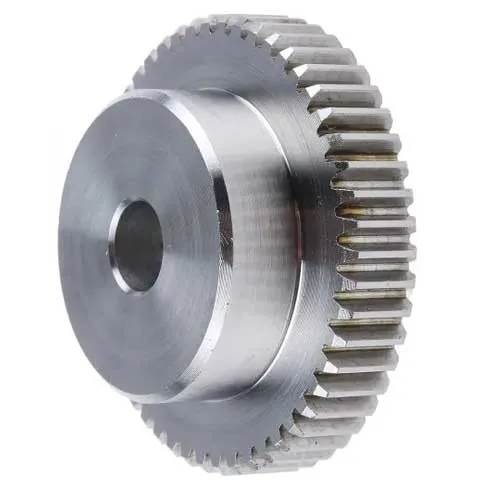

MODULE GEAR WHEEL, PITCH 1,5, Z75

Code: ITCM15Z75
€10.70
VAT excluded: €8.77
Size : Z 75
In stock 1 piece in stock Ships in 24/48 hours

Description

Module 1.5 Gear Ring - Item No. ITCM1500


The module 1.5 gear ring is a cylindrical toothed wheel with 75 teeth, intended to mesh with pinions or racks of the same module. For the coupling, the module and the number of teeth are what count; wheels of a different module cannot mesh with each other. The material, tooth width, bore and treatment are not specified for this item: they must be requested from the supplier before purchase, especially if the wheel has to work under load.

Technical Specifications

  • Type: cylindrical toothed wheel, gear ring with module toothing
  • Module: 1.5
  • Number of teeth: 75
  • Toothing: for meshing with wheels of the same module
  • Material: to be confirmed
  • Item No.: ITCM1500
  • Brand: SIT

Applications and Uses

  • Toothed gear drives with wheels of the same module
  • Coupling with racks for linear movements
  • Spare parts for existing machines and automatic systems
