Camozzi S6430 Sprint swivel male tee, Series 6000 super-rapid: two push-in connections for 8 mm tube and G1/4 or G1/8 male thread with PTFE sealing ring. Nickel-plated brass, up to 16 bar.
Push-In Fittings
Push-In Fittings
Camozzi Series 6000 push-in fittings for compressed air tubing: the tube is pushed in by hand and released without tools. You will find straight, elbow, tee, Y, cross and reducing fittings and bulkhead connectors in nickel-plated brass, plus plugs, with metric and inch threads and tube diameters from 3 to 14. Below the products there is a guide to choosing the shape and size.
There are 24 products.
Camozzi 6432 swivel male tee, Series 6000 super-rapid: two tube connections and G1/4 parallel male thread, swivelling. Tube 10 or 6 mm among the variants. Nickel-plated brass, up to 16 bar.
Camozzi 6442 4-M5 side swivel male tee, Series 6000 super-rapid: two connections for 4 mm tube and swivel M5 male thread. Nickel-plated brass, NBR O-ring, up to 16 bar. Weight 18 g.

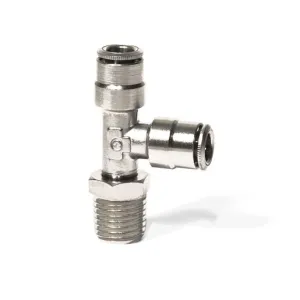

Camozzi 6440 side swivel male tee, Series 6000 super-rapid: two connections for 8 mm tube and side male thread of 1/4 or 1/8 among the variants. Nickel-plated brass, up to 16 bar.

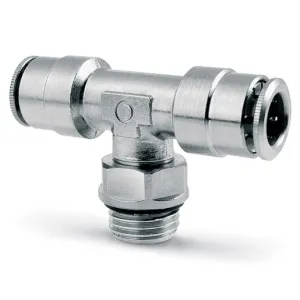

Camozzi 6432 3-M3 micro swivel male tee, Series 6000: two connections for 3 mm tube and M3 male thread with gasket, for micro components. Nickel-plated brass, weight 5 g.

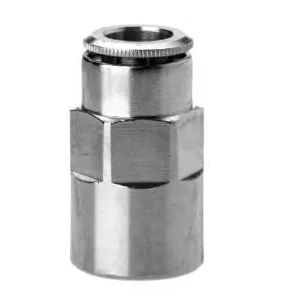

Camozzi 6463 straight female fitting, Series 6000 super-rapid: tube connection and G parallel female thread. Variants for 6, 8 or 10 mm tube with G1/8 or G1/4. Nickel-plated brass, up to 16 bar.

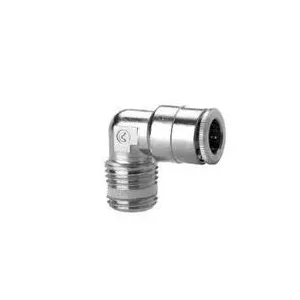

Camozzi S6500 fixed male elbow, Series 6000 super-rapid: 90° tube connection and tapered R thread. Tube from 4 to 12 mm and thread from 1/8 to 3/8 among the variants. Nickel-plated brass, up to 16 bar.

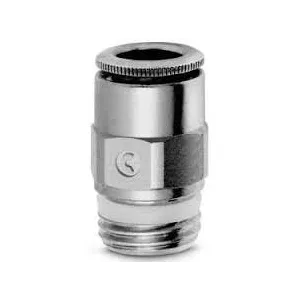

Camozzi S6510 Sprint straight male fitting, Series 6000 super-rapid: tube connection and G male thread with PTFE sealing ring. Tube from 4 to 14 mm and thread from 1/8 to 1/2 among the variants.

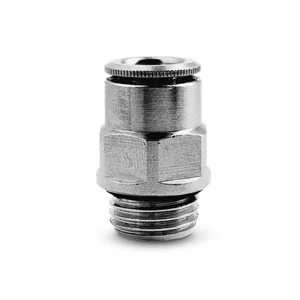

Camozzi 6512 straight male fitting, Series 6000 super-rapid: connection for 4 mm tube and metric male thread M5 or M6 among the variants. Nickel-plated brass, up to 16 bar, weight 4-6 g.
Camozzi 6512 3-M5 micro straight male fitting, Series 6000: connection for 3 mm tube and M5 thread with O-ring, for pneumatic micro components. Nickel-plated brass, weight 1 g.

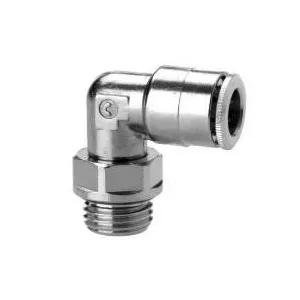

Camozzi S6520 Sprint swivel male elbow, Series 6000 super-rapid: swivelling 90° connection and G thread with PTFE ring. Tube from 4 to 14 mm and thread from 1/8 to 1/2 among the variants.

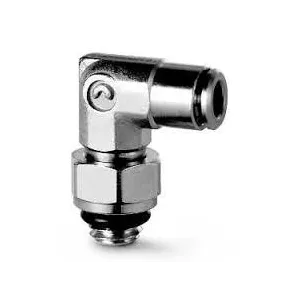

Camozzi 6522 swivel male elbow, Series 6000 super-rapid, for micro components: tube from 3 to 8 mm with M3, M5 or G1/8 thread among the variants. Nickel-plated brass, up to 16 bar.

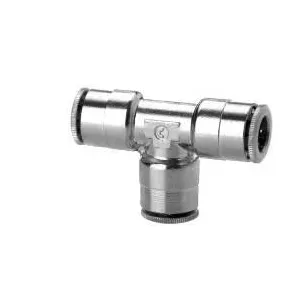

Camozzi 6540 union tee, Series 6000 super-rapid: three connections for tubes of the same diameter to branch a line. Tube from 3 to 14 mm among the variants. Nickel-plated brass, up to 16 bar.

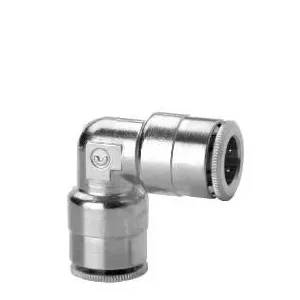

Camozzi 6550 union elbow, Series 6000 super-rapid: two 90° connections to join two tubes in a bend. Tube from 4 to 14 mm among the variants. Nickel-plated brass, up to 16 bar.

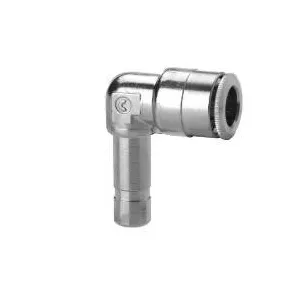

Camozzi 6555 elbow with plug-in spigot, Series 6000: tube connection and spigot to insert into another push-in fitting. Sizes 4-4 or 6-6 among the variants. Nickel-plated brass.

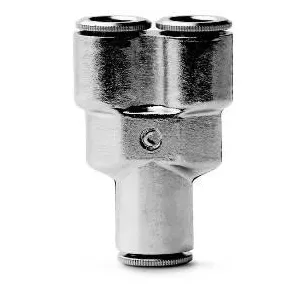

Camozzi 6560 union Y fitting, Series 6000 super-rapid: three push-in connections in a Y to divide a line into two close branches. Tube from 3 to 10 mm among the variants. Nickel-plated brass.
Camozzi 6580 straight union, Series 6000 super-rapid: tube-to-tube joint to extend or repair a line. Tube from 3 to 14 mm among the variants. Nickel-plated brass, up to 16 bar.

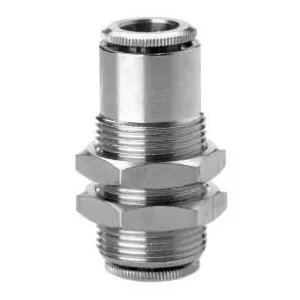

Camozzi 6590 bulkhead fitting, Series 6000 super-rapid: passes through panels and housings connecting two tubes, with threaded body and nut. Tube 4 or 12 mm among the variants. Nickel-plated brass.

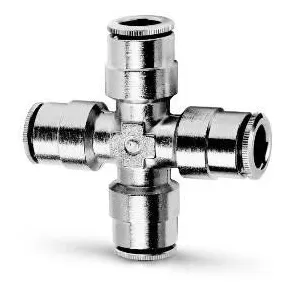

Camozzi 6600 intermediate cross, Series 6000 super-rapid: four connections for tubes of the same diameter to distribute air. Tube from 4 to 12 mm among the variants. Nickel-plated brass.

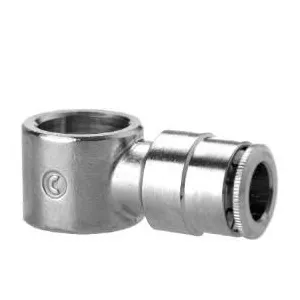

Camozzi 6610 single swivel ring, Series 6000 super-rapid: eye-type fitting with tube connection, to fix with a hollow screw or on SCU, SVU, SCO regulators. Tube and thread among the variants.

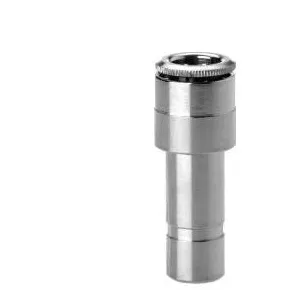

Camozzi 6800 push-in reducer, Series 6000 super-rapid: connection for one tube and larger diameter spigot to insert into another fitting. Sizes from 4-6 to 12-14 among the variants. Nickel-plated brass.

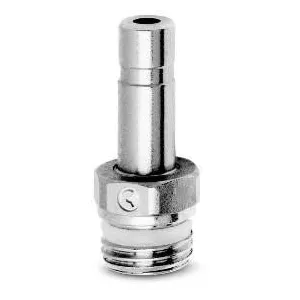

Camozzi 6811 Sprint male adapter, Series 6000: spigot to insert into a push-in fitting and G male thread with PTFE ring. Sizes 8-1/4, 6-1/8 and 8-1/8 among the variants. Nickel-plated brass.

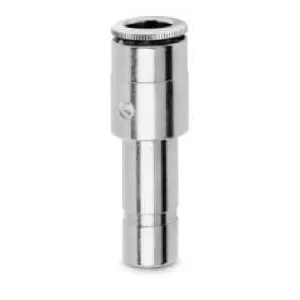

Camozzi 6850 push-in enlarger, Series 6000: connection for one tube and smaller diameter spigot to insert into another fitting. Sizes 6-4 and 8-6 among the variants. Nickel-plated brass, up to 16 bar.

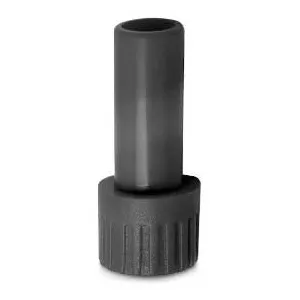

Camozzi 6900 plastic male plug for Series 6000 push-in quick fittings: it tightly closes an unused connection on tees, crosses and manifolds. Diameters from 3 to 12 mm among the variants.
