CAMOZZI FITTING ART.6850

Code: CL685064
€1.40
VAT excluded: €1.15
Size : HOSE 6+INN.4
In stock 10 pieces in stock Ships in 24/48 hours

Description

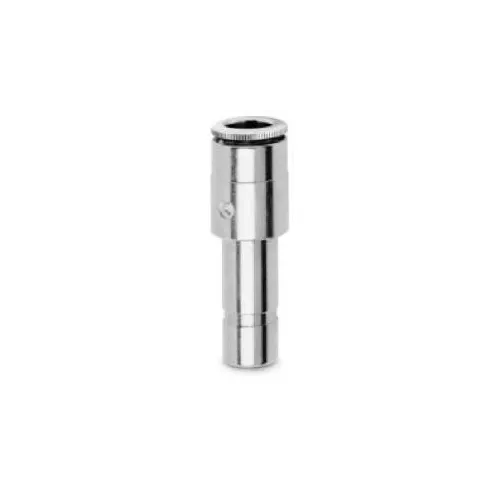

Push-In Enlarger Camozzi Series 6000 - Item No. 6850


Camozzi 6850 push-in enlarger, from the super-rapid Series 6000 range, with body and clamp in nickel-plated brass and NBR O-ring. Just push the tube into the connection: the clamp locks it with an even grip that stays reliable even after many connections, and no tools are needed to connect or release it. It accepts polyamide, polyurethane, polyethylene and Hytrel polyester tubes. It has the connection for the larger tube and a smaller-diameter spigot to insert into a push-in fitting: it goes from a 6 mm tube to a 4 mm one, or from 8 to 6.

Technical Specifications

  • Type: Push-in enlarger
  • Sizes: 6-4 or 8-6, among the variants
  • Materials: Body and clamp in nickel-plated brass, NBR O-ring
  • Operating pressure: -0.9 to 16 bar
  • Temperature: -20 to 80 °C
  • Item No.: 6850
  • Brand: CAMOZZI

Applications and Uses

  • Changing between tubes of different diameter
  • Maintenance and repair of pneumatic circuits
  • Automatic machines, test benches and pneumatic panels

More details

Brand
CAMOZZI
Code
CL685064
Manufacturer code
6850 6-4
