CAMOZZI FITTING ART. 6440

Code: CL6440814
€3.60
VAT excluded: €2.95
Size : 1/4"-T.8-T.8
In stock 93 pieces in stock Ships in 24/48 hours

Description

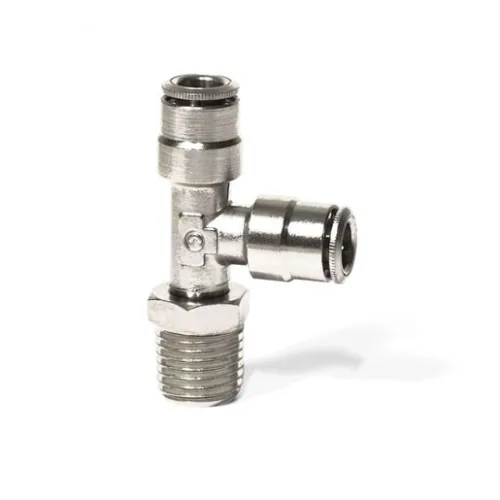

Side Swivel Male Tee Fitting Camozzi Tube 8


Camozzi 6440 side swivel male tee, part of the Series 6000 of super-rapid nickel-plated brass push-in fittings. The tube goes in by hand and a special clamp holds it, distributing the seal over the whole surface, with a long life even if it is inserted and released often, always without tools. It works with compressed air and PA, PU, PE or Hytrel tubes. It has the male thread on one side of the T and a swivel body to orient the two outlets for 8 mm tube. Thread of 1/4 or 1/8 among the variants.

Technical Specifications

  • Type: Side swivel male tee, push-in
  • Tube: 8 mm
  • Thread: 1/4 or 1/8, among the variants
  • Materials: Body and clamp in nickel-plated brass, NBR O-ring
  • Operating pressure: -0.9 to 16 bar
  • Temperature: -20 to 80 °C
  • Compatible tubes: PA, PU, PE, Hytrel polyester
  • Item No.: 6440
  • Brand: CAMOZZI

Applications and Uses

  • Swivel branches on valves and cylinders
  • Automatic machines, test benches and pneumatic panels
  • Circuits with polyamide or polyurethane tube

More details

Brand
CAMOZZI
Code
CL6440814
Manufacturer code
6440 8-1/4

Attachments
