CAMOZZI FITTING ART.6800

Code: CL68001012
€2.00
VAT excluded: €1.64
Size : TUBE 10-IN.12
In stock 10 pieces in stock Ships in 24/48 hours

Description

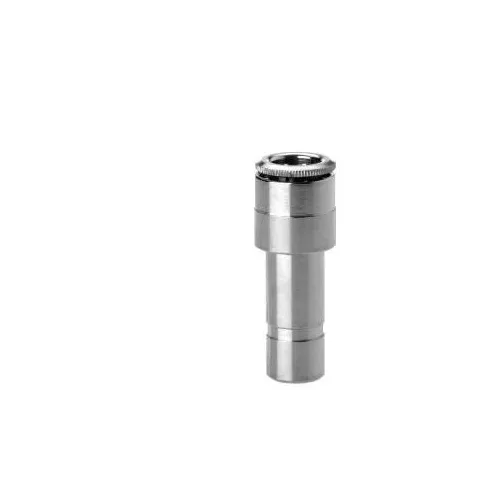

Push-In Reducer Camozzi Series 6000 - Item No. 6800


Camozzi 6800 push-in reducer, from the Series 6000 of super-rapid nickel-plated brass fittings for plastic tubes. The tube is pushed in by hand as far as it goes and a special clamp holds it with an even seal over the whole surface, reliable even after many insertions; the tube is connected and disconnected without tools. It is used with polyamide, polyurethane, polyethylene or Hytrel polyester tubes, with compressed air. It has the connection for the smaller tube and a larger-diameter spigot to insert into a push-in fitting: it changes from one diameter to the other without threaded fittings.

Technical Specifications

  • Type: Push-in reducer
  • Sizes: from 4-6 to 12-14, among the variants
  • Materials: Body and clamp in nickel-plated brass, NBR O-ring
  • Operating pressure: -0.9 to 16 bar
  • Temperature: -20 to 80 °C
  • Item No.: 6800
  • Brand: CAMOZZI

Applications and Uses

  • Changing between tubes of different diameter
  • Maintenance and repair of pneumatic circuits
  • Automatic machines, test benches and pneumatic panels

More details

Brand
CAMOZZI
Code
CL68001012
Manufacturer code
6800 10-12
