CAMOZZI FITTING ART.6510

Code: CL65101012
€2.50
VAT excluded: €2.05
Size : 1/2"-T.10
In stock 40 pieces in stock Ships in 24/48 hours

Description

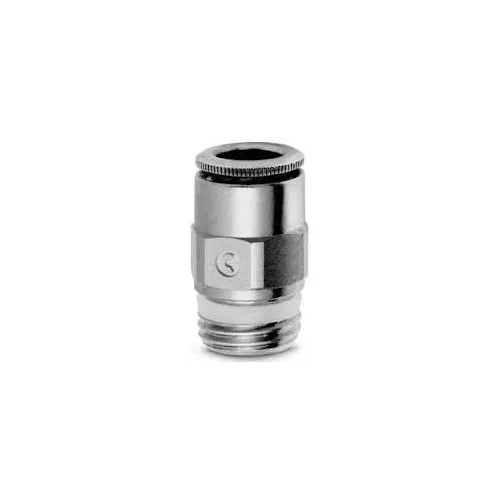

Sprint Straight Male Push-In Fitting Camozzi - Item No. S6510


Camozzi S6510 Sprint straight male fitting, part of the Series 6000 of super-rapid nickel-plated brass push-in fittings. The tube goes in by hand and a special clamp holds it, distributing the seal over the whole surface, with a long life even if it is inserted and released often, always without tools. It works with compressed air and PA, PU, PE or Hytrel tubes. It is the basic straight fitting between tube and threaded hole: the G parallel male thread has the Sprint PTFE ring, which seals without tape. Tube from 4 to 14 mm, thread from 1/8 to 1/2.

Technical Specifications

  • Type: Straight male push-in
  • Thread seal: Sprint PTFE ring
  • Thread: G parallel from 1/8 to 1/2
  • Tube: from 4 to 14 mm, among the variants
  • Materials: Body and clamp in nickel-plated brass, NBR O-ring
  • Operating pressure: -0.9 to 16 bar
  • Temperature: -20 to 80 °C
  • Item No.: S6510
  • Brand: CAMOZZI

Applications and Uses

  • Ports of valves, cylinders and filter units
  • Automatic machines, test benches and pneumatic panels
  • Compressed air systems and lines in workshops and industry

More details

Brand
CAMOZZI
Code
CL65101012
Manufacturer code
S6510 10-1/2

Attachments
