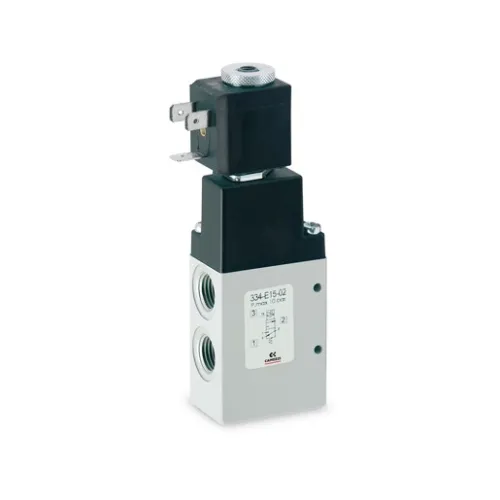

CAMOZZI SERIES 3 SOLENOID VALVE

Code: CL33401502
€53.30
VAT excluded: €43.69
Size : 334-015-05
In stock 5 pieces in stock Ships in 24/48 hours

Description

Solenoid Valves Camozzi Series A and Series 3


Camozzi solenoid valves of the Series A, direct-acting 22 mm, and of the Series 3, with G1/8 and G1/4 ports. Reference code A332-1C2 is a Series A 3/2 normally open, with M5 supply and G1/8 utilisation ports, 1.5 mm orifice, flow 50 Nl/min and nickel-plated brass body. The Series A includes 2/2 and 3/2 poppet valves, from -0.9 up to 15 bar depending on model and solenoid. The Series 3 includes 3/2 and 5/2 balanced spool valves with aluminium body, stainless steel spool, NBR, bistable manual override, from 700 Nl/min in G1/8 and 1300 Nl/min in G1/4. The valves are supplied without coil. Choose the model among the variants.

Technical Specifications

  • Type: 2/2, 3/2, 5/2 solenoid valves
  • Series A: Direct-acting 22 mm, M5 and G1/8 ports, nickel-plated brass or PBT body
  • Series 3: Balanced spool, G1/8 and G1/4 ports, aluminium body
  • A332-1C2: 3/2 NO, M5 and G1/8, 50 Nl/min, -0.9 to 7 bar
  • Series 3 flow: 700 Nl/min (G1/8), 1300 Nl/min (G1/4)
  • Coils: U7, G7, A8 and others, sold separately
  • Model: selectable among the variants
  • Brand: CAMOZZI

Applications and Uses

  • Control of cylinders and actuators
  • Pilots and signals for pneumatic circuits
  • Automatic machines, test benches and pneumatic panels

More details

Brand
CAMOZZI
Code
CL33401502
EAN13
8051707462587
Manufacturer code
334-015-02
