CAMOZZI COIL SERIES A8

Code: CLA83
€15.00
VAT excluded: €12.30
Size : A83 24V/DC
In stock 6 pieces in stock Ships in 24/48 hours

Description

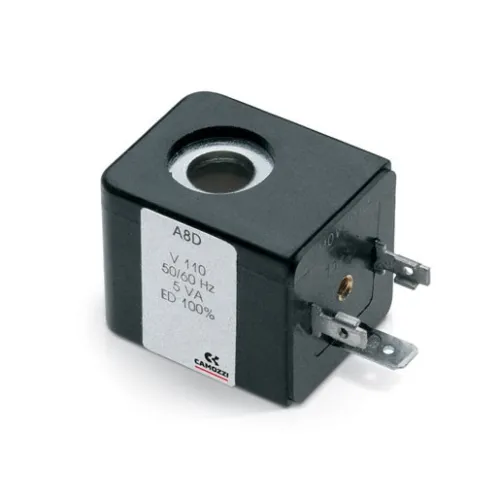

Coil for Camozzi Solenoid Valves Series A8 30x30


Camozzi coil, or solenoid, of the Series A8 in 30x30 format, with PPS coating, for Camozzi solenoid valves of the Series A, 3, 4, 9 and NA. It slides onto the tube of the pilot solenoid and is locked with the ring nut, which the manufacturer recommends tightening by hand without tools. Class H insulation, continuous duty ED 100 per cent, two-pole plus earth connection to DIN EN 175 301-803 form A, to be used with the 124-800 connector: with the connector the protection goes from IP54 to IP65. Variants: A83 24 V DC 4 W; A8B 24 V AC 5 VA; A8D 110 V AC 50/60 Hz 5 VA; A8E 220 V AC 50/60 Hz 5 VA.

Technical Specifications

  • Type: Coil (solenoid) 30x30
  • Series: A8
  • Compatible solenoid valves: Camozzi Series A, 3, 4, 9, NA
  • Connection: DIN EN 175 301-803-A (124-800 connector)
  • Protection: IP54, IP65 with connector
  • Insulation: Class H, ED 100 duty
  • Voltages: A83 24 V DC 4 W, A8B 24 V AC, A8D 110 V AC, A8E 220 V AC (5 VA)
  • Coating: PPS
  • Item No.: A8
  • Brand: CAMOZZI

Applications and Uses

  • Replacing the coil of Camozzi solenoid valves
  • Changing the control voltage
  • Maintenance and repair of pneumatic circuits
