CAMOZZI SERIES 6 SOLENOID VALVE

Code: CL600450A62 EAN: 8051707486156
€39.20
VAT excluded: €32.13
Size : 600-450A62
In stock 11 pieces in stock Ships in 24/48 hours

Description

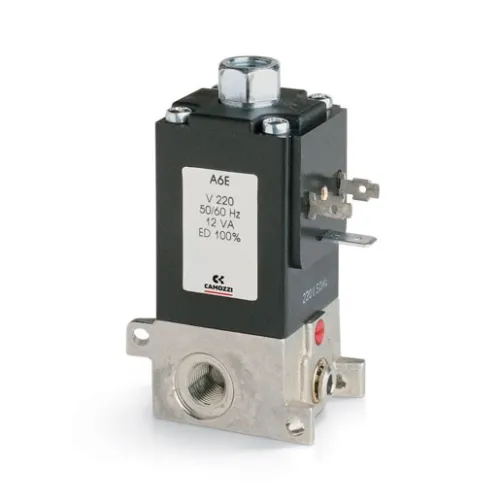

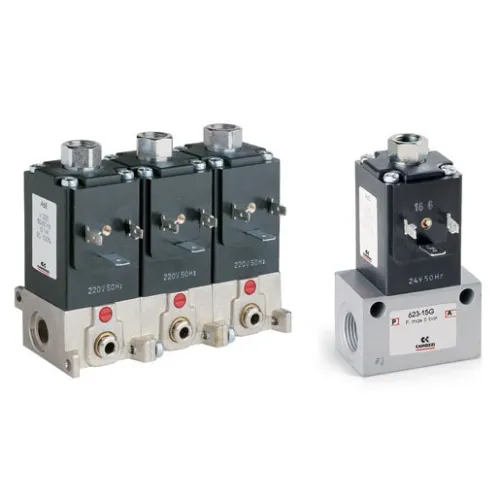

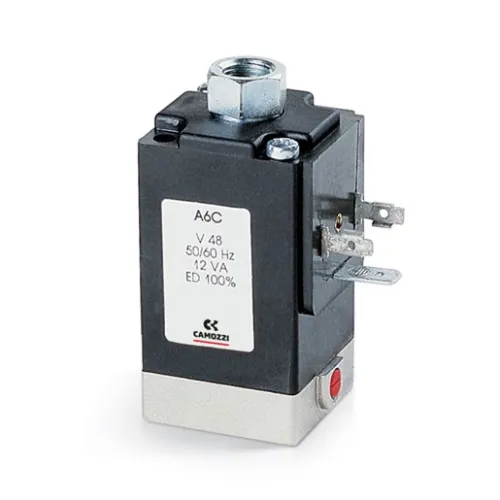

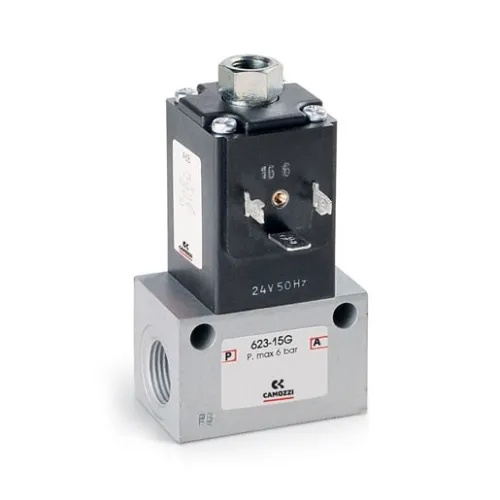

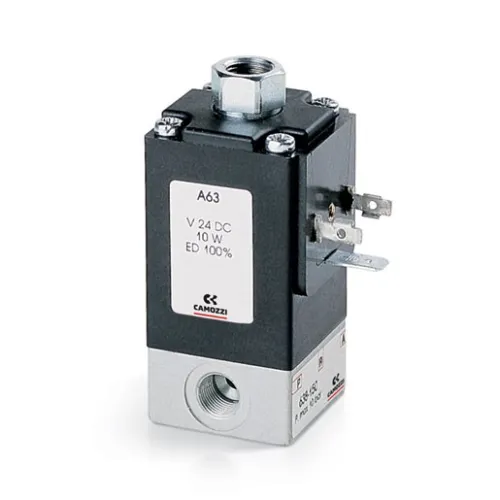

Direct-Acting Solenoid Valves Camozzi Series 6


Camozzi solenoid valves of the Series 6, direct-acting 30 mm, poppet type, usable with or without lubrication. Reference code 600-450-A6D is a normally closed 3/2 on a base with rotating interface, 2 mm orifice, flow 106 Nl/min, from 0 to 10 bar, with a 110 V AC coil. The series also includes the NC 2/2 with G3/8 ports of 290 Nl/min, the NC 3/2 G1/8 of 130 Nl/min, the NO 3/2 and versions for manifolds. Nickel-plated brass or aluminium body, FKM seals, A6 32x32 coil in PPS, class H insulation, 124-800 connector with IP65. Voltages of 12 and 24 V DC, 24, 110 and 230 V AC among the variants.

Technical Specifications

  • Type: 2/2 and 3/2 direct-acting solenoid valves
  • Series: 6, 30 mm
  • 600-450-A6D: 3/2 NC on rotating base, 106 Nl/min, 0-10 bar, 110 V AC
  • Ports: G1/8, G3/8 or interface, depending on model
  • Coil: A6 32x32 in PPS, class H
  • Connector: 124-800, IP65
  • Temperature: 0 to 60 °C (FKM seals)
  • Model and voltage: selectable among the variants
  • Brand: CAMOZZI

Applications and Uses

  • Control of small cylinders and actuators
  • Shut-off of air and inert gases
  • Automatic machines, test benches and pneumatic panels

More details

Brand
CAMOZZI
Code
CL600450A62
EAN13
8051707486156
Manufacturer code
600-450-A62 12V DC

Attachments

Recommended accessories and spare parts

CAMOZZI COIL MOD. SERIES A.. U..

€10.10
AVAILABLE
Availability: 7 In stock

Camozzi Series U7 22x22 coil for Series A, 3, 4, 9 and NA solenoid valves: DIN EN 175 301-803-B connection, IP65 with connector, continuous duty. Voltages from 12 V to 230 V among the variants.

CAMOZZI COIL SERIES A8

€15.00
AVAILABLE
Availability: 6 In stock

Camozzi Series A8 30x30 PPS coil for Series A, 3, 4, 9 and NA solenoid valves: DIN EN 175 301-803-A connection, class H, IP65 with connector. A83 24 V DC, A8B 24 V AC, A8D 110 V AC, A8E 220 V AC.

CAMOZZI SILENCER ART. 2921

€4.50
AVAILABLE
Availability: 33 In stock

Camozzi Mod. 2921 silencer with sintered bronze element and copper-plated steel body, for valve exhausts: G1/8 to G3/4 among the variants, up to 10 bar. G1/8: 1730 Nl/min, 81 dB(A).
