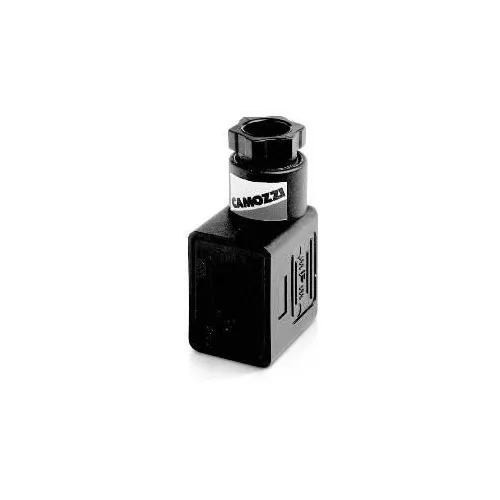

CAMOZZI CONNECTOR FOR SOLENOID VALVE 122-800

Code: CL122800
€1.90
VAT excluded: €1.56
Size : 122-800
In stock 25 pieces in stock Ships in 24/48 hours

Description

Camozzi Solenoid Valve Coil Connector 122-800 / 124-800 / 126-800


Camozzi electrical connector for solenoid valve coils, in the version without electronics, black in colour. It plugs onto the coil contacts and is fixed with the central screw: it carries the control cable and closes the connection, bringing the coil protection up to IP65. Variants: 122-800, form B to DIN EN 175 301-803, for U7, G7 and B7 coils, with PG9 cable gland; 124-800, form A, for A8, B8, B9 coils and for Series 6 solenoid valves, with PG9 or PG11 cable gland; 126-800, form C 8 mm, for DC solenoid valves from 6 to 110 V, with PG7 cable gland. Versions with LED have different codes.

Technical Specifications

  • Type: Coil connector, without electronics
  • 122-800: Form B, U7, G7, B7 coils, PG9
  • 124-800: Form A, A8, B8, B9 coils and Series 6, PG9/PG11
  • 126-800: Form C 8 mm, DC from 6 to 110 V, PG7
  • Standard: DIN EN 175 301-803
  • LED: No
  • Item No.: 122-800 / 124-800 / 126-800
  • Brand: CAMOZZI

Applications and Uses

  • Wiring Camozzi solenoid valve coils
  • Replacing broken or lost connectors
  • Maintenance and repair of pneumatic circuits

More details

Brand
CAMOZZI
Code
CL122800
Manufacturer code
122-800
