Rod Ends, Lock Nuts, Universal Joints & Cam Followers
Rod Ends, Lock Nuts, Universal Joints & Cam Followers
Spherical and threaded rod ends, lock nuts and lock washers, universal joint crosses, knuckle joints, cam followers and balls for bearings. You will find SIT rod ends with right-hand and left-hand threads, ISB lock nuts from the KM series, KMA self-locking nuts, AMA crosses and NUKR cam followers, each in its own sizes. Below the products there is a guide to choosing the right part.
There are 13 products.
ISB balls for bearings and mechanics in 44 diameters given in inches and millimetres, from 1/4 inch (6.35 mm) upwards. Material and precision grade to be confirmed.
NUKR series stud type track rollers with axial guidance, fitted with cylindrical rollers without a cage and labyrinth seals. Ten sizes can be selected among the variants, from KR 22 to KR 72.

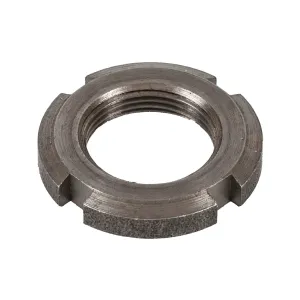

ISB KM series plain locknuts to lock the bearing on the shaft and make mounting and dismounting easier. Threads from 12×1 to 200×3, selectable among the variants.

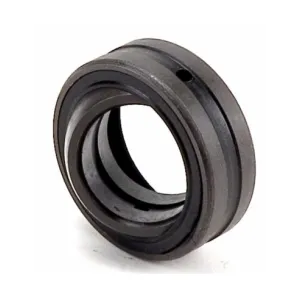

GE ES series radial spherical plain bearings, steel on steel, with greasing and dimensions to ISO standards. Nine bore diameters selectable among the variants, reference GE 50 ES.

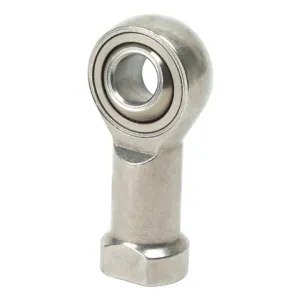

Stainless steel threaded spherical rod end with female shank, right-hand thread 6x1 and 6 mm bore: for articulated connections in damp or corrosive environments. Single item, no variants.
Steel rod end joint with a female thread on one side and a male thread on the other, for articulated connections. Five threads selectable among the variants; reference JLCS10.
Threaded spherical rod ends with female shank and left-hand thread, in four threads from 8x1.25 to 14x2. They are used in connections with right-hand and left-hand thread adjustment.
Threaded spherical rod ends with female shank and right-hand thread: from 6x1 to 22x1.5, selectable among the variants. They transmit motion between parts at varying angles.

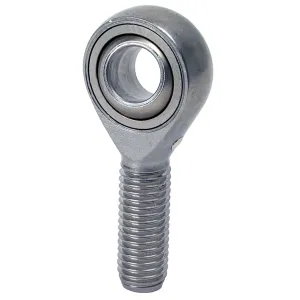

Threaded spherical rod ends with male shank and right-hand thread, from 6x1 to 22x1.5 selectable among the variants, for articulated connections of levers and tie rods.

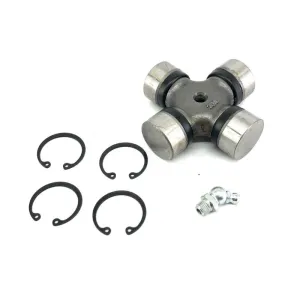

Universal joint cross for cardan joints, in 14 sizes given as diameter by length (from 22 x 55 mm upwards), selectable among the variants. Spare part for joints and drives.

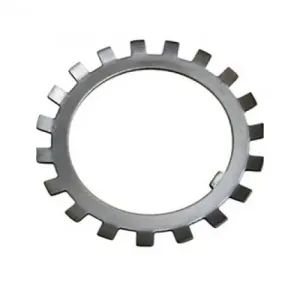

ISB MB series lock washers, to be combined with the KM locknut to lock it on the shaft and prevent it from loosening. Diameters from D. 12 to D. 160, selectable among the variants.
