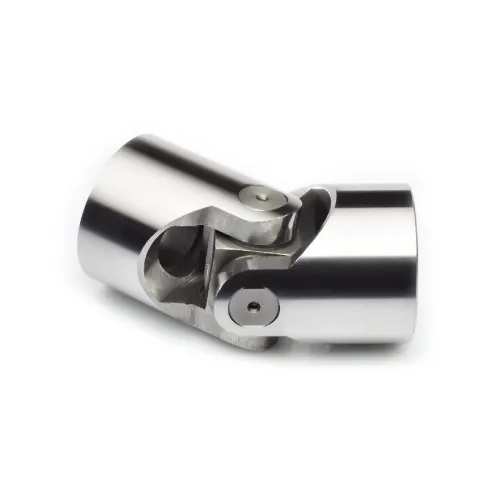

ARTICULATED JOINT 01P-3P

Code: GA01P
€19.60
VAT excluded: €16.07
Size : 01 P
In stock 2 pieces in stock Ships in 24/48 hours

Description

Articulated Joints (Universal Joints) - P Series

P series articulated joints (universal joints or cardan joints) for transmitting rotary motion between misaligned shafts. The articulated joint allows torque transmission even with significant angular misalignment between the drive and driven shafts. The P series covers a wide range of transmissible torques, from light to medium applications.

Technical specifications

  • Type: articulated joint (universal / cardan)
  • Series: P
  • Available sizes: 01P, 02P, 03P, 04P, 05P, 1P, 2P, 3P
  • Torque transmission with angular misalignment
  • Steel construction with needle roller cross

Applications and uses

  • Motion transmission between angled shafts
  • Agricultural and industrial machinery
  • Conveying and handling systems
  • Drives where angular misalignment needs to be compensated

More details

Brand
SIT
Code
GA01P
Manufacturer code
GU01P
