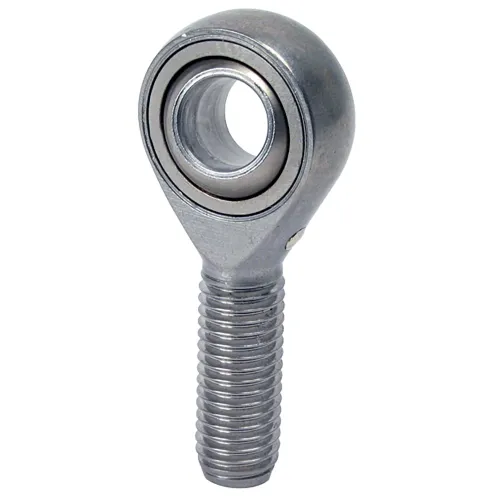

THREADED ROD ENDS, MALE, RIGHT-HAND

Code: GATSM10
€8.70
VAT excluded: €7.13
Size : D 10x1,5 DX
Out of stock Usually ships within 10 days

One email when it comes back. No advertising.

Description

Male Right-Hand Threaded Rod Ends - Item No. JESPOS20


The male shank with right-hand thread screws directly into a threaded hole in the lever, the tie rod or the support: the spherical part stays free to move, and the connection transmits motion between parts that are not aligned.

Eleven variants cover the threads from 6x1 to 22x1.5. As with all threaded rod ends, the shank length and the load should be checked against the manufacturer's drawing before you order.

Technical Specifications

  • Type: Threaded spherical rod end
  • Shank: male
  • Thread: right-hand
  • Dimensions: selectable among the variants
  • Function: transmission of motion between parts at varying angles
  • Item No.: JESPOS20
  • Brand: SIT

Applications and Uses

  • Articulated connections and adjustable tie rods
  • Linkages and levers
  • Hydraulic and pneumatic cylinders

More details

Brand
SIT
Code
GATSM10
Manufacturer code
jpos10
