ISB YEL-type bearings for housings, in three sizes: 207 bore 35, 208 bore 40, 209 bore 45. Construction and locking on the shaft to be confirmed before ordering.
Bearing Housings & Insert Bearings
Bearing Housings & Insert Bearings
Cast iron housings with SIT bearing already fitted, in UCF, UCFC, UCFL, UCP and UCT versions, plus ISB insert bearings, adapter sleeves for bearings with a tapered bore and seals for SN and TSN housings. Almost all items have sizes to choose from on the product page. Below the products you will find a guide to telling the housing types apart.
There are 16 products.
SIT UCF 218-56 housing: square flange unit with cast iron body and self-aligning bearing with double seal, for an inch shaft of 3 1/2, equal to 88.9 mm. Single item.

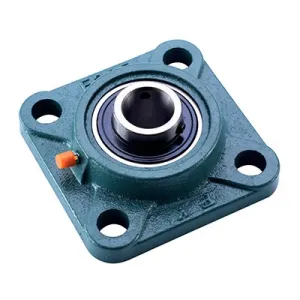

SIT UCF bearing unit: square flange unit with cast iron housing and self-aligning ball bearing with double seal. Shafts from 15 mm (UCF 202) to 80 mm (UCF 216), selectable among the variants.
SIT UCFC bearing unit: round flange unit with centring spigot, cast iron body and self-aligning bearing. Shafts from 20 mm (UCFC 204) to 75 mm (UCFC 215) among the variants.

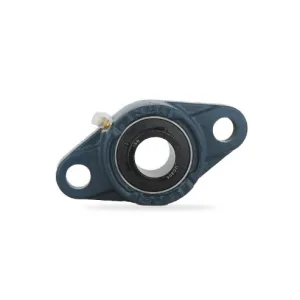

SIT UCFL bearing unit: flange with two fixing holes, cast iron body and self-aligning bearing with double seal. Shafts from 15 mm (UCFL 202) to 60 mm (UCFL 212), to be chosen among the variants.

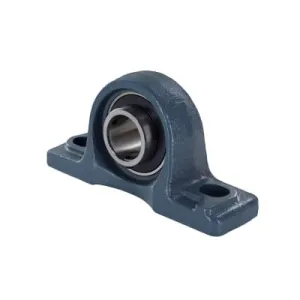

Housing with UCP bearing, compact unit with cast iron housing and integrated ball bearing, ideal for supporting rotating shafts in mechanical and industrial applications with simple and robust mounting.

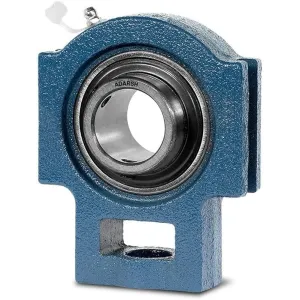

SIT UCT bearing unit: take-up housing with slide, cast iron body and self-aligning ball bearing. Shafts from 25 mm (UCT 205) to 65 mm (UCT 213) among the variants; the WA base is available.

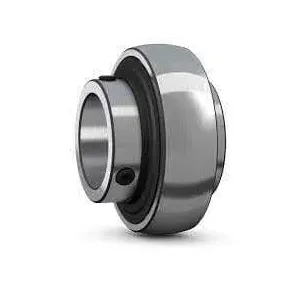

ISB bearings for YAT housings, 2XX series, sizes from 204 to 210. Locking on the shaft and compatibility with the matching housing to be checked before ordering.

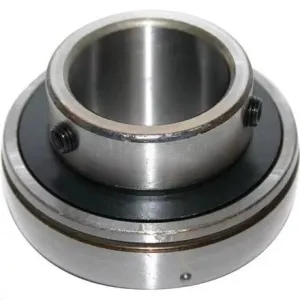

ISB bearings for UC housings, 562 series from 56201 to 56214, with seals on both sides. The exact insert type and compatibility with the housing must be confirmed before ordering.

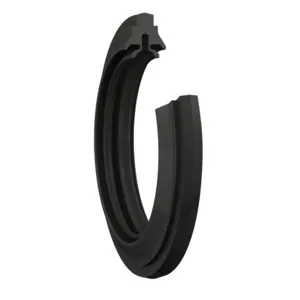

Seal for SN housing, available in various sizes depending on the housing size, ideal for ensuring sealing and protection from dust, water and external agents.

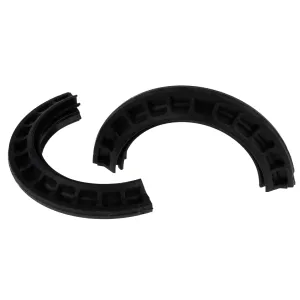

Seal for TSN housing, available in various sizes depending on the housing size, ideal for ensuring optimum sealing and protection from dust, water and external agents.

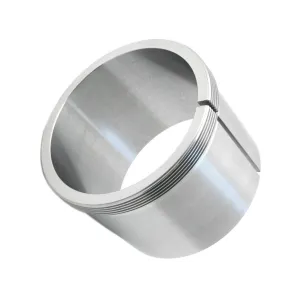

ISB AHX-type adapter sleeves for bearings with tapered bore, to be combined with a locknut and a lock washer. Sizes AHX 2311, AHX 2313, AHX 2318 and AHX 312 can be selected among the variants.
ISB H 23XX series adapter sleeves for bearings with tapered bore, to be used with a locknut and lock washer to fix the bearing to the shaft. Eighteen sizes among the variants.
ISB H 2XX series adapter sleeves for bearings with tapered bore: combined with a locknut and lock washer, they make mounting and dismounting easier. Sizes from H 204.

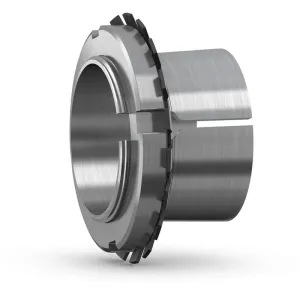

ISB H 31XX series adapter sleeves, sizes H 3120, H 3122 and H 3128: for mounting bearings with tapered bore on a cylindrical shaft, with locknut and lock washer.
ISB H 3XX series adapter sleeves for bearings with tapered bore: fitted with locknut and washer, they allow tapered bearings to be used on cylindrical shafts. Sizes from H 304.
