INSERT BEARINGS FOR HOUSINGS UC
€12.40
VAT included
Delivery in 24/48 hours

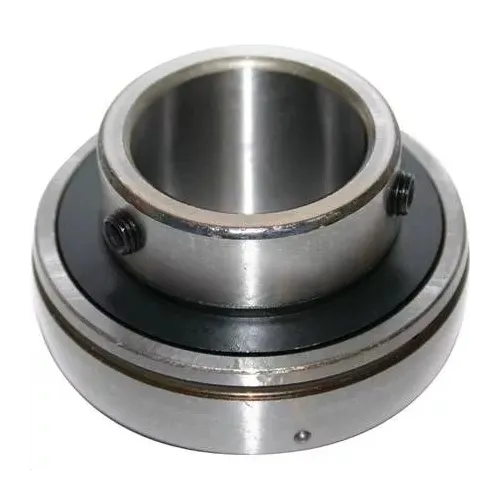

Multiple variants (UC201, UC202, UC203, UC204, UC205, UC206, etc.). Self-aligning ball bearings for cast iron housings, spherical outer ring, pre-greased, with double seal, available for shafts 12-90 mm. Photos are for illustration purposes only.
Guarantee safe & secure checkout
Type: Self-aligning deep groove ball bearings for mounting in cast iron housings (UC/UCP/UCFL/UCFC/UCT). Single row of balls, outer ring with swivelling spherical raceway.
Self-alignment: The spherical raceway of the outer ring allows swivelling of up to 2-3° in the housing, eliminating stress caused by slight misalignment and shaft deflection.
Features: Cylindrical inner ring, single row of balls, reinforced PA66 polyamide cage. Double seal: nitrile rubber lip on the inside, steel shield on the outside.
Pre-lubrication: All bearings are pre-greased for life with lithium grease, ready to fit without initial lubrication. The grease remains effective throughout the service life.
Double seal: Complete protection against dust, moisture and contaminants from the external environment. Contact sealing lips reduce friction while maintaining protection.
Mounting: They fit into the spherical seats of the cast iron housings and swivel freely thanks to the spherical raceway. Simple and quick mounting.
Specifications: Medium load capacity, self-alignment up to 2-3°, temperatures -30°C to +80°C, radial clearance class C3 (increased) for agricultural/industrial applications.
Availability: The UC series provides bearings for shaft diameters from 12 mm to 90 mm, with wide compatibility with standard and non-standard housings.
Applications: Agricultural machinery (harvesters, threshers), conveyor belts, fans, pumps, conveying systems, applications where maintenance is difficult.
Benefits: Pre-greased for zero maintenance, protective double seal, self-alignment, simple mounting, wide availability and compatibility.
CUI56201
