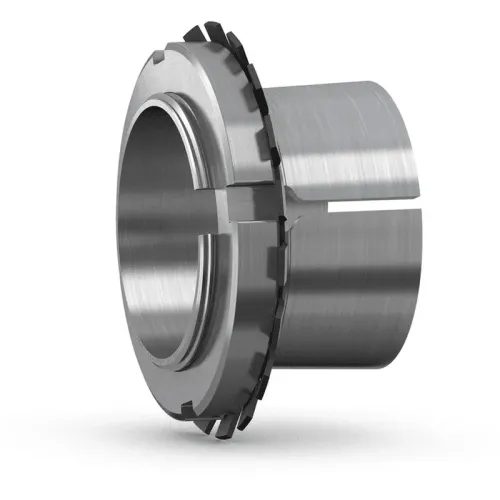

WITHDRAWAL SLEEVE FOR TAPERED BEARINGS H 23XX

Code: CUIH2306
€14.50
VAT excluded: €11.89
Size : H 2306
In stock 11 pieces in stock Ships in 24/48 hours

Description

ISB Adapter Sleeves H 23XX Series


Series H 23 of ISB sleeves for bearings with tapered bore. The sleeve is slid onto the shaft and receives the bearing, which is tightened with a locknut; this is the usual way of mounting a tapered-bore bearing on a cylindrical shaft. The H23 series appears in the manufacturer's list next to H2, H3, H30, H31 and H32. Sizes from H 2306.

Technical Specifications

  • Type: Adapter sleeves for bearings with tapered bore
  • Series: H 23
  • Combination: KM locknut and MB lock washer
  • Dimensions: from H 2306 to beyond H 2313, selectable among the variants
  • Item No.: CUIH2300
  • Brand: ISB

Applications and Uses

  • Machines for processing steel, glass, marble and wood
  • Industrial cleaning and bottling machines
  • Automatic opening systems

More details
