Housing with UCP bearing, compact unit with cast iron housing and integrated ball bearing, ideal for supporting rotating shafts in mechanical and industrial applications with simple and robust mounting.
- Free shipping In Italy on orders from €99.00
- Returns within 14 days How it works
- Secure payments PayPal, cards, Klarna, bank transfer
- WhatsApp support 371 342 6056
Description

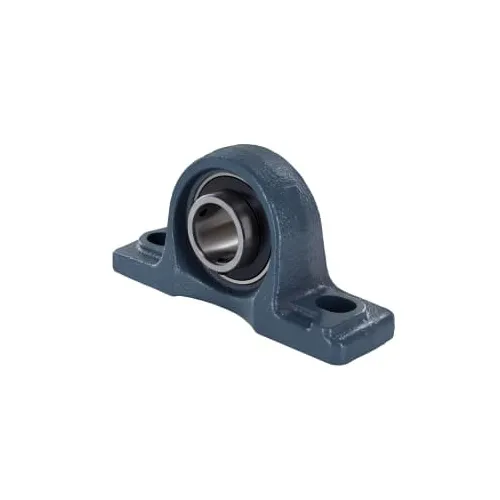

The UCP housing with bearing is a ready-to-install unit, consisting of a one-piece cast iron housing and an insert radial ball bearing. This configuration ensures stable support of the rotating shaft, ease of mounting and minimal maintenance.
Design features of the UCP housing:
-
One-piece cast iron housing: sturdy structure with an omega or rectangular profile designed to ensure rigidity and mechanical strength.
-
Two horizontal fixing holes in the base of the housing, allowing the housing to be mounted on surfaces or metal framework with bolts or threaded rods.
-
Integrated bearing with side seals to protect against contamination and retain the lubricating grease inside.
-
Insert bearing with spherical outer surface, which can oscillate in the housing seat to compensate for small misalignments between the shaft and the machine body.
-
Pre-installed grease and grease nipple on the housing to make periodic lubrication easier and extend bearing life.
This type of housing is also often called a “pillow block” or upright housing and is suitable for general-purpose use in machinery, production lines, mechanical transmissions, conveyor belts and agricultural or industrial applications.
⚠️ Images are for illustrative purposes only and may not accurately represent the final product.
More details
- Brand
- SIT
- Code
- SUUCP202
