THREADED ROD ENDS, FEMALE, RIGHT-HAND

Code: GATSF10
€6.20
VAT excluded: €5.08
Size : F 10x1,5 DX
In stock 16 pieces in stock Ships in 24/48 hours

Description

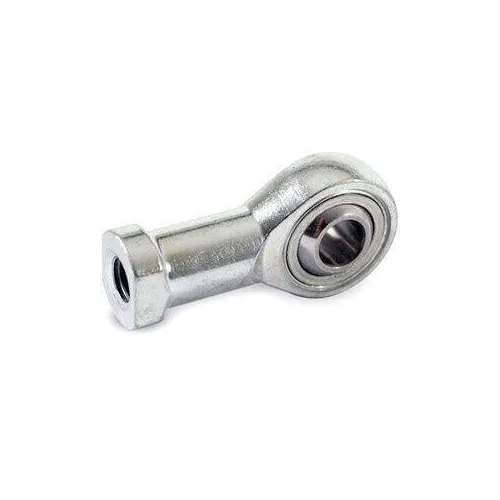

Female Right-Hand Threaded Rod Ends - Item No. TSF6


The spherical rod end with a female shank and right-hand thread screws onto a male stud to connect a lever, a tie rod or the rod of a cylinder. The inner ball makes it possible to transmit motion between parts at varying angles, compensating for misalignment.

The thread is chosen among the variants, from 6x1 to 22x1.5. Before ordering, check the bore, the overall dimensions and the loads against the drawing of the machine.

Technical Specifications

  • Type: Threaded spherical rod end
  • Shank: female
  • Thread: right-hand
  • Dimensions: selectable among the variants
  • Function: transmission of motion between parts at varying angles
  • Item No.: TSF6
  • Brand: SIT

Applications and Uses

  • Articulated connections and adjustable tie rods
  • Linkages and levers
  • Hydraulic and pneumatic cylinders

More details

Brand
SIT
Code
GATSF10
Manufacturer code
JESPHS10
