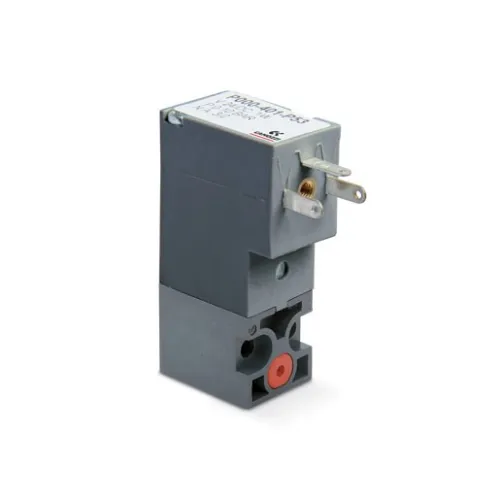

CAMOZZI P000-303-P5 SOLENOID VALVE

Code: CLP000303P53
€21.80
VAT excluded: €17.87
Size : P000303P5
In stock 2 pieces in stock Ships in 24/48 hours

Description

3/2 Direct-Acting Micro Solenoid Valve Camozzi Series P 24 V DC - Item No. P000-303-P53


Camozzi micro solenoid valve of the Series P, direct-acting, 15 mm wide, with 3/2 function and mounting on ISO 15218 interface, on a single base or on a manifold. Version P000-303-P53 is normally closed, with 1.5 mm orifice, pressure from 0 to 7 bar and flow of 35 Nl/min; the P000-403-P53 is normally open, up to 5 bar. Both have a 24 V DC 2 W coil, 9.4 mm industrial standard connection and IP65 protection with connector. PBT body, FKM poppet seal, response times under 10 ms on opening. Monostable manual button. M5 single base: Mod. P001-02.

Technical Specifications

  • Type: 3/2 direct-acting micro solenoid valve
  • Series: P, 15 mm
  • Mounting: ISO 15218 interface
  • Versions: P000-303-P53 NC (0-7 bar, 35 Nl/min), P000-403-P53 NO (0-5 bar)
  • Voltage: 24 V DC, 2 W
  • Connection: Industrial standard 9.4 mm, IP65 with connector
  • Temperature: 0 to 50 °C
  • Materials: PBT body, FKM poppet, NBR seals
  • Item No.: P000-303-P53
  • Brand: CAMOZZI

Applications and Uses

  • Pilots and small-flow pneumatic signals
  • Control of mini cylinders and suction cups
  • Compact equipment and test benches

More details

Brand
CAMOZZI
Code
CLP000303P53
Manufacturer code
P000-303-P53
