CAMOZZI COIL MOD. SERIES A.. U..

Code: CLA72
€10.10
VAT excluded: €8.28
Size : A72 12V/CC
In stock 7 pieces in stock Ships in 24/48 hours

Description

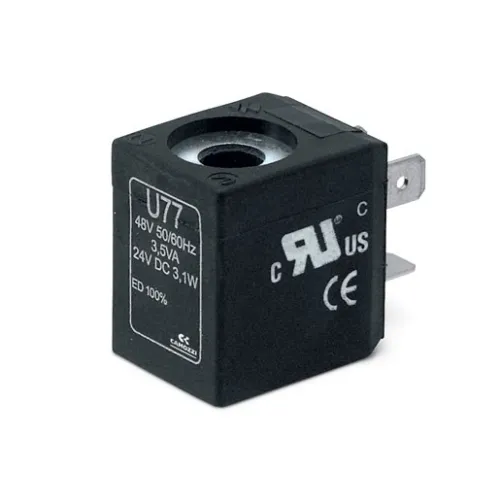

Coil for Camozzi Solenoid Valves Series U7 22x22


Camozzi coil, or solenoid, of the Series U7 in 22x22 format, for Camozzi solenoid valves of the Series A, 3, 4, 9 and NA. It slides onto the tube of the pilot solenoid and is replaced without touching the pressurised part. PET coating, class F insulation, continuous duty ED 100 per cent, two-pole plus earth connection to DIN EN 175 301-803 form B, to be used with the 122-800 connector: with the connector the protection goes from IP54 to IP65. The U7 coils are UL recognised. Voltage variants: U7J 230 V AC 3.5 VA; U7K 110 V AC; U73 24 V DC 5 W; U77 24 V DC or 48 V AC; U7H 12 V DC or 24 V AC; others among the variants.

Technical Specifications

  • Type: Coil (solenoid) 22x22
  • Series: U7
  • Compatible solenoid valves: Camozzi Series A, 3, 4, 9, NA
  • Connection: DIN EN 175 301-803-B (122-800 connector)
  • Protection: IP54, IP65 with connector
  • Insulation: Class F, ED 100 duty
  • Voltages: U7J 230 V AC, U7K 110 V AC, U73 24 V DC, U77, U7H and others among the variants
  • Item No.: U7
  • Brand: CAMOZZI

Applications and Uses

  • Replacing the coil of Camozzi solenoid valves
  • Changing the control voltage
  • Maintenance and repair of pneumatic circuits

More details

Brand
CAMOZZI
Code
CLA72
Manufacturer code
U72
